LEONDARX / 2-Wire Villa Video Doorbells
2 Wire IP Video Intercom System
This is a BUS 2-wire full digital video intercom system with a 4-inch touch screen.
At the entrance. Built for the access workflow.
Explore the application, daily use and installation requirements for this model.
A clear point of arrival.
The outdoor station is the visitor-facing part of an intercom installation. Match the call workflow and access interface to the building.
- Connection: BUS 2-wire connection, 2MP full digital
- Display: 4-inch touch screen
Communication at the door.
Review the documented call, camera and access functions for this version. The indoor answer point and connected equipment are specified as part of the system.
- Calling Modes: Name list / direct household / keypad calling
- Transmission Distance: 100 meters
Specify the entrance together.
Confirm the mounting position, power arrangement, cable route and release interface before installation.
- Power Supply: DC24V central power supply
- Product Dimensions: 210 × 116 × 36 mm
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- System Type
- BUS 2-wire full digital video intercom
- Video Resolution
- 2MP full digital
- Display
- 4-inch touch screen
- Calling Modes
- Name list / direct household / keypad calling
- Transmission Distance
- Up to 100 meters
- Unlocking Methods
- PIN code, RFID card, mobile phone app
- Standby Function
- Loop video adverts display
- Power Supply
- DC24V central power supply
- Product Dimensions
- 210 × 116 × 36 mm
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗2 Wire IP Video Intercom System
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 2 Wire IP Video Intercom System. Published details include Power Supply: DC24V central power supply; Product Dimensions: 210 × 116 × 36 mm. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.

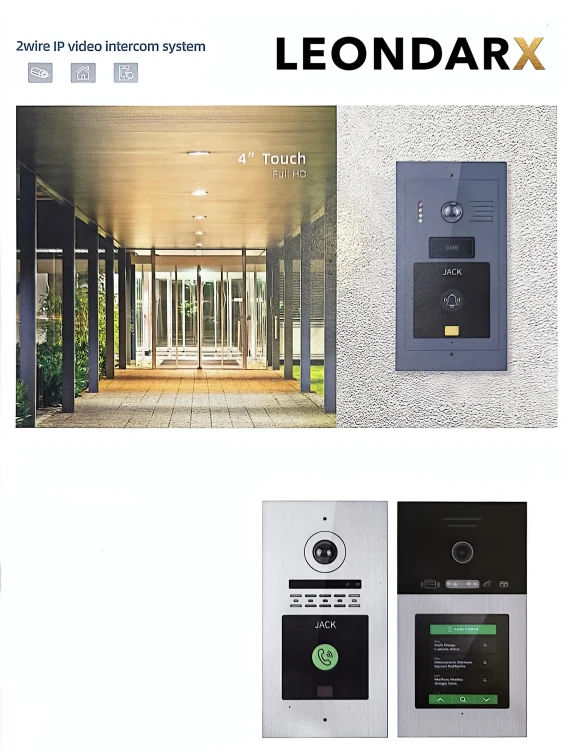

Original model material.
Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Connection: BUS 2-wire connection, 2MP full digital
- Display: 4-inch touch screen
- Calling Modes: Name list / direct household / keypad calling
- Transmission Distance: 100 meters
- Unlocking Methods: PIN code, RFID card, mobile phone app
- Standby Function: Loop video adverts at standby
- Power Supply: DC 24V
- Product Dimensions: 210 × 116 × 36 mm
The 2-wire full digital video intercom system is designed to deliver reliable and convenient access control for residential buildings and villa applications. Built with 2MP full digital video technology, the system ensures clear communication between indoor and outdoor stations, providing users with a secure way to verify visitors before granting access. Equipped with a 4-inch touch screen, the indoor station offers an intuitive and responsive interface for users to operate. The system supports three flexible calling modes: name list calling, direct household calling, and keypad calling, catering to different building management needs.
In standby mode, the device can display loop video adverts, adding practical value for property management. The system uses DC24V central power supply for stable operation, supporting a maximum transmission distance of 100 meters between stations.With a compact dimension of 210×116×36mm, the intercom system is easy to install and fits well into various residential environments, making it a practical choice for modern building access control solutions.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
