Tuya Smart 2 Wire IP Video Intercom System
A Tuya-enabled 2-wire IP video intercom system for residential entrance communication. Confirm the station, indoor monitor and power configuration for the selected installation.
From the entrance. Into the home.
Explore the application, daily use and installation requirements for this model.

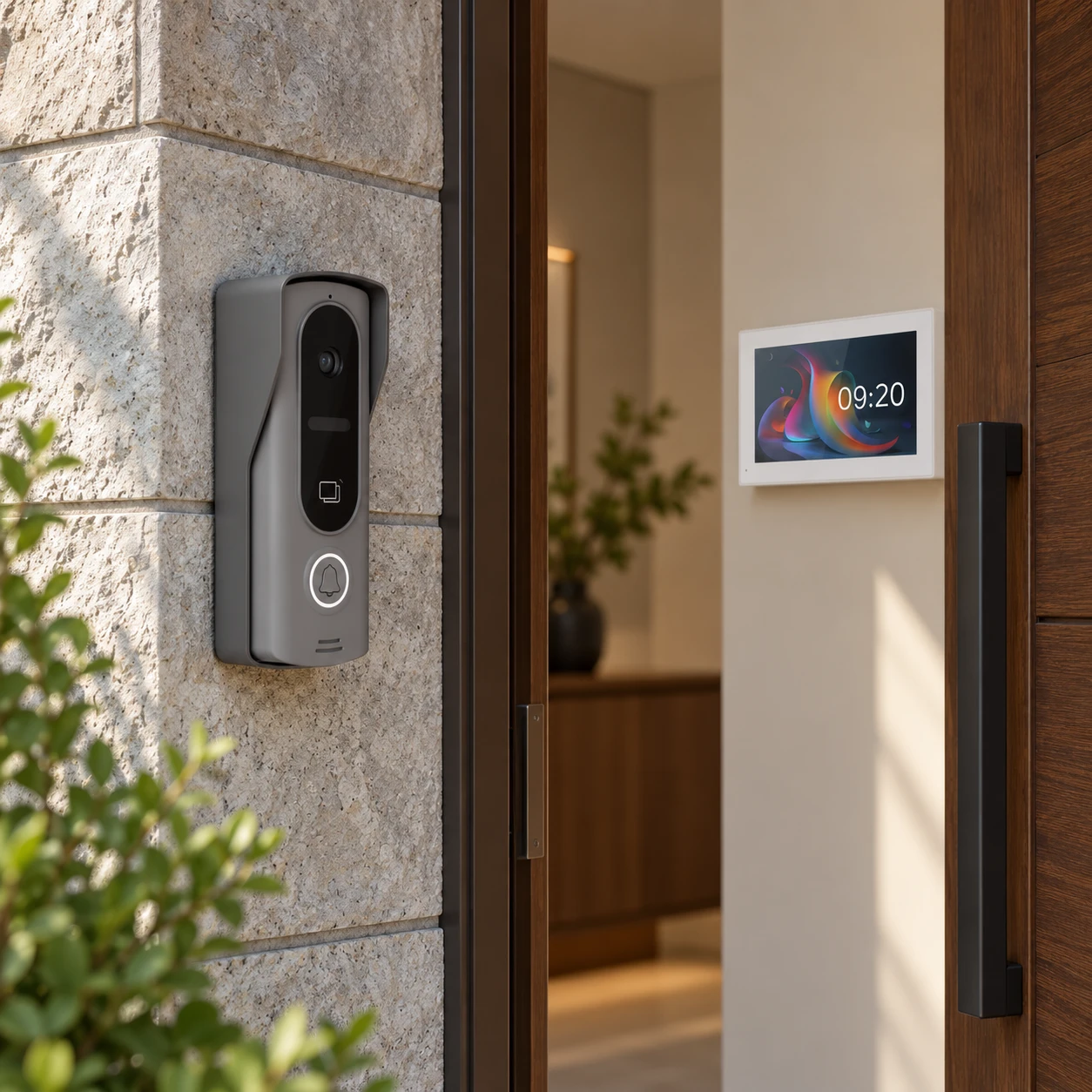

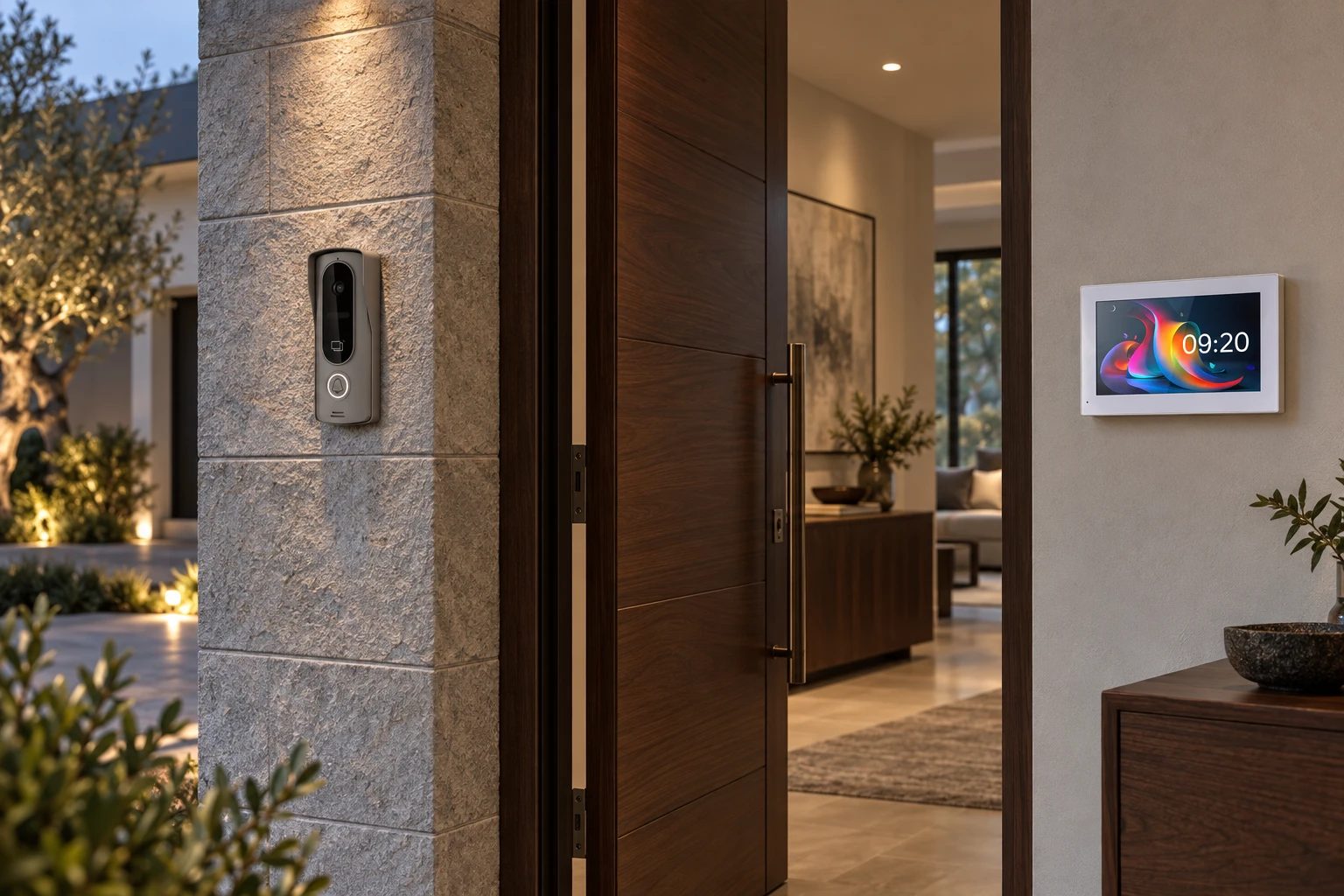

An entrance system in context.
Plan the outdoor call point and indoor answer point as a matched system for the residential entrance.

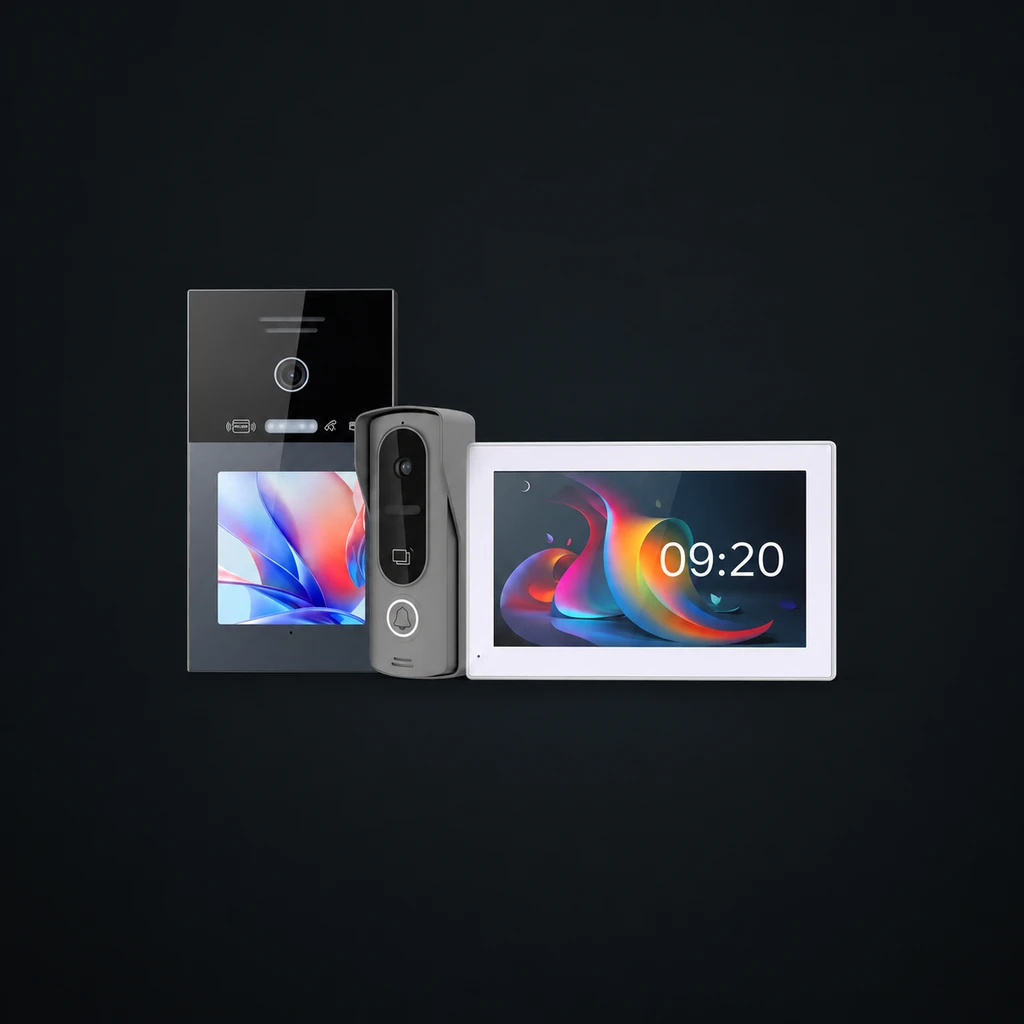

- This matched intercom system consists of three specialized devices built for reliable residential access and communication.
- The first unit is the B6 2-wire outdoor station, constructed with die-cast aluminum for outdoor wall-mounted installation.

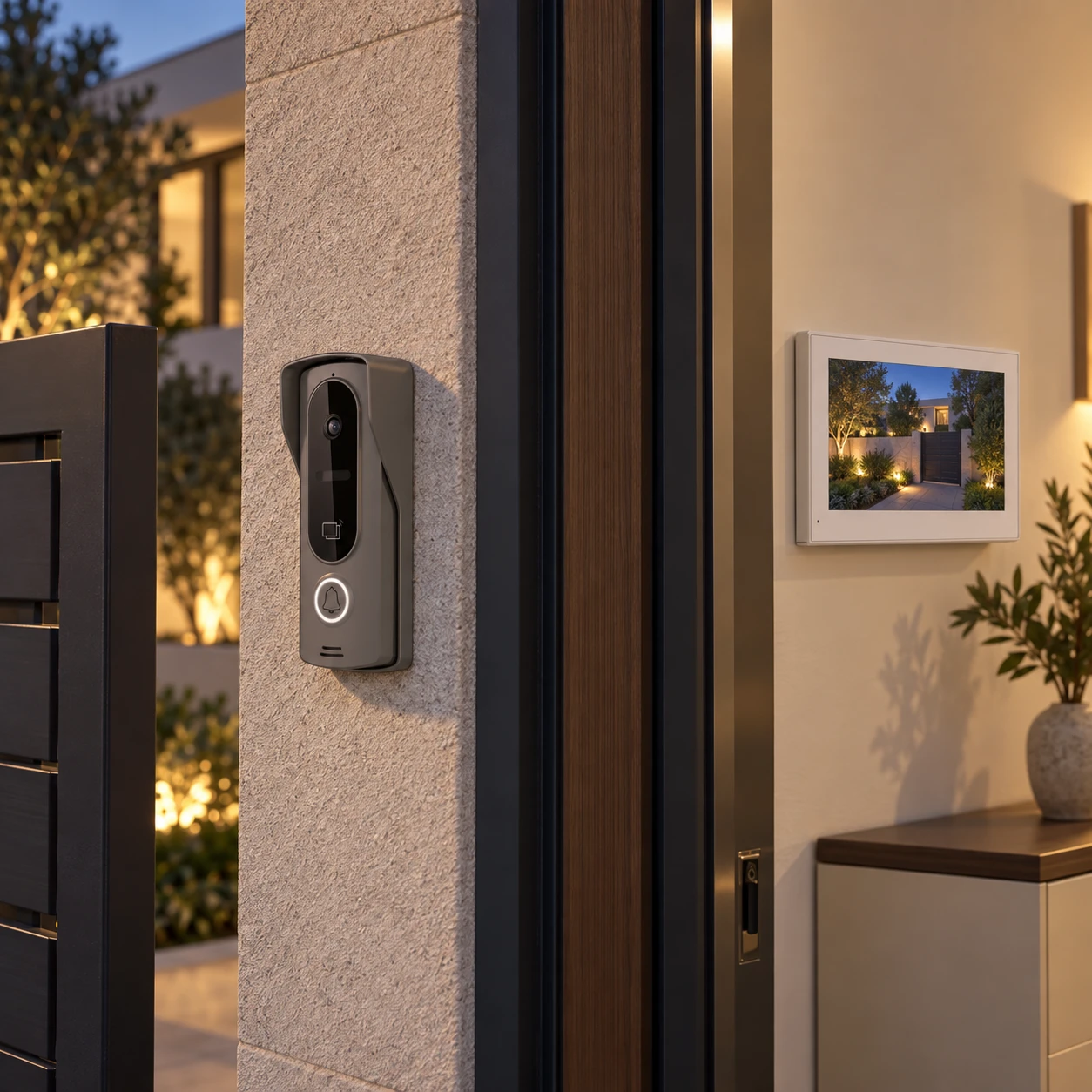

A familiar answer point.
Review the documented communication and access functions, then confirm the included station, monitor and power configuration.
- It adopts simple 2-wire retrofit wiring structure to reduce installation difficulty.
- Equipped with a 2MP CMOS camera, it delivers smooth HD video 720p footage with distortion correction and IR night vision.
Check the wiring and mounting.
The exact device selection, topology, cable condition and power arrangement define the installation. Existing cable reuse requires a site assessment.
- Outdoor Station Protection: IP55 rated
- Installation: 2-wire retrofit support
- Housing & Material: ABS plastic + glass touch panel
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- System Type
- Tuya Smart 2-Wire IP Video Intercom System
- Installation
- 2-wire retrofit support
- Camera Resolution
- 2MP HD (720P)
- Camera Features
- IR-CUT night vision, 150° horizontal view, WDR
- Outdoor Station Protection
- IP55 rated
- Working Modes
- Villa Mode, High-rise Mode, Building Mode
- Unlocking Methods
- IC card, password, smartphone app remote unlock
- App Control
- Tuya App / Smart Life compatible
- Additional Functions
- Motion detection, CCTV linkage, message notification
- Application Scenarios
- Villa intercom, high-rise residential, multi-unit buildings
- System Type
- Tuya Smart 2-Wire IP Video Intercom System
- Power Consumption
- ≤2.5W standby, ≤5W working
- Working Temperature
- -10℃ ~ 55℃
- Compliance
- CE certified, RoHS 2.0 compliant
- Additional Functions
- Weather display, clock, voice message, custom ringtone/screensaver
- Installation
- 2-wire retrofit support
- Display
- 7-inch IPS touch screen, 1024 × 600 resolution
- Housing & Material
- ABS plastic + glass touch panel
- Dimensions
- 182 × 118 × 20 mm
- Connectivity
- 2.4G Wi-Fi, 2-wire (SPoE) interface
- Power Supply
- DC24–48V wide voltage
- App Control
- Tuya App / Smart Life compatible, smartphone app remote management
- Video Support
- H.264 HD video stream, 720P
- Storage
- Built-in memory for 100 images, up to 512G TF card support
- System Type
- Tuya Smart 2-Wire IP Video Intercom System
- Working Temperature
- -40℃ ~ 60℃
- Compliance
- CE certified, RoHS 2.0 compliant
- Installation
- 2-wire retrofit support
- Camera Resolution
- 2MP HD (720P)
- Camera Features
- IR-CUT night vision, 110° horizontal view, WDR, distortion correction
- Housing & Material
- Die-cast aluminum alloy, wall-mounted
- Dimensions
- 150 × 58 × 34 mm
- Unlocking Methods
- IC card (up to 100 cards), 2-channel relay unlock
- App Control
- Tuya App / Smart Life compatible, smartphone app remote unlock
- Video Encoding
- H.264
- Power Consumption
- ≤2.5W standby, ≤5.5W working
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗
Published manufacturer reference ↗Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for Tuya Smart 2 Wire IP Video Intercom System. Published details include Outdoor Station Protection: IP55 rated; Installation: 2-wire retrofit support; Housing & Material: ABS plastic + glass touch panel. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.
Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
This matched intercom system consists of three specialized devices built for reliable residential access and communication. The first unit is the B6 2-wire outdoor station, constructed with die-cast aluminum for outdoor wall-mounted installation. It adopts simple 2-wire retrofit wiring structure to reduce installation difficulty. Equipped with a 2MP CMOS camera, it delivers smooth HD video 720p footage with distortion correction and IR night vision. Supporting IC card access and dual relay door release, this outdoor station works steadily with Tuya app control. Users can manage door status and perform remote unlock directly via a smartphone app.

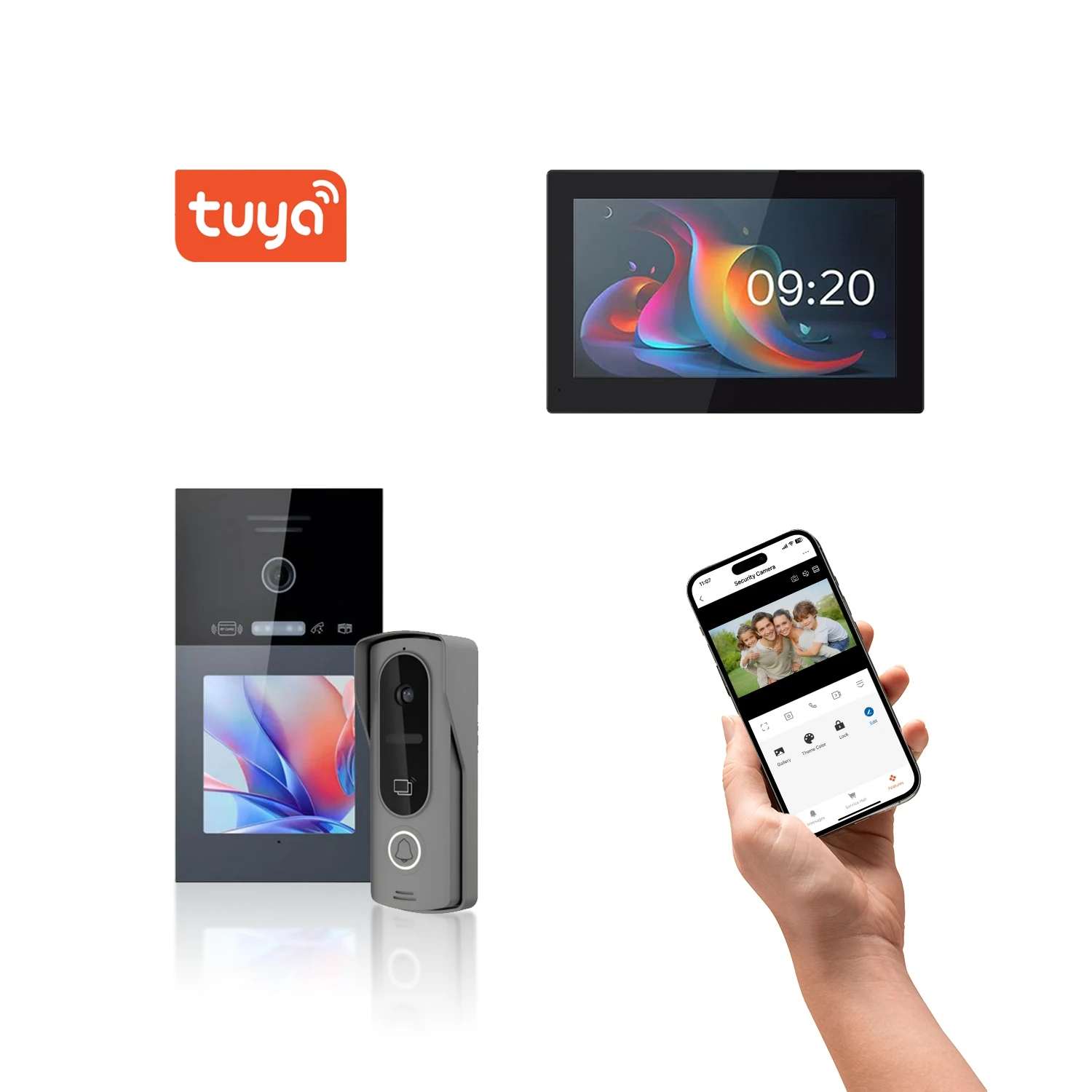

The second product is the H20 7-inch 2-wire indoor station, serving as the indoor display and control terminal. It also supports 2-wire retrofit connection for easy pairing with outdoor stations. Featuring a 7-inch IPS touch screen, it presents synchronized HD video 720p live feed with clear visual performance. With built-in Wi-Fi module, this indoor monitor enables convenient Tuya app control and allows users to complete remote checking and remote unlock through a smartphone app.
The third multi-mode outdoor station is professionally designed for flexible villa intercom, high-rise and building usage scenarios. This upgraded outdoor door station is engineered with waterproof housing that reaches genuine IP65 dustproof and waterproof rating, adapting to complex outdoor environments. It retains universal 2-wire retrofit compatibility and captures detailed HD video 720p footage with its wide-angle camera. Integrated with password and card unlocking methods, it supports intelligent Tuya app control and convenient remote unlock function on a smartphone app.
