LEONDARX / Fully-Automatic
T18 Fully-Automatic Face Recognition and Visible Peephole Smart Lock
The T18 Full-Automatic Smart Door Lock integrates facial recognition, visible peephole monitoring, and TUYA smart control into one premium device, delivering ultimate convenience and robust security for modern homes.

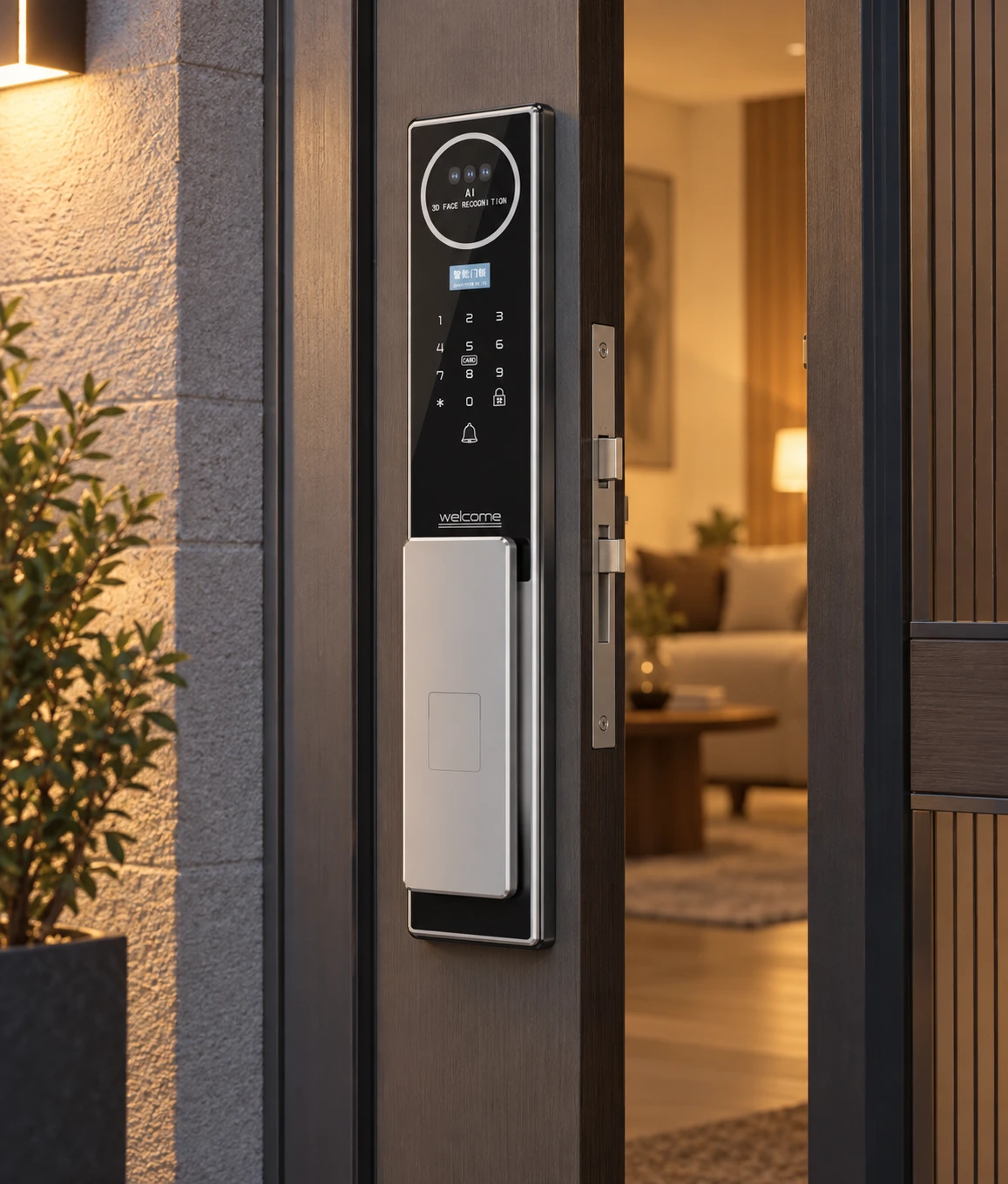

At the door. Ready for daily use.
Explore the application, daily use and installation requirements for this model.

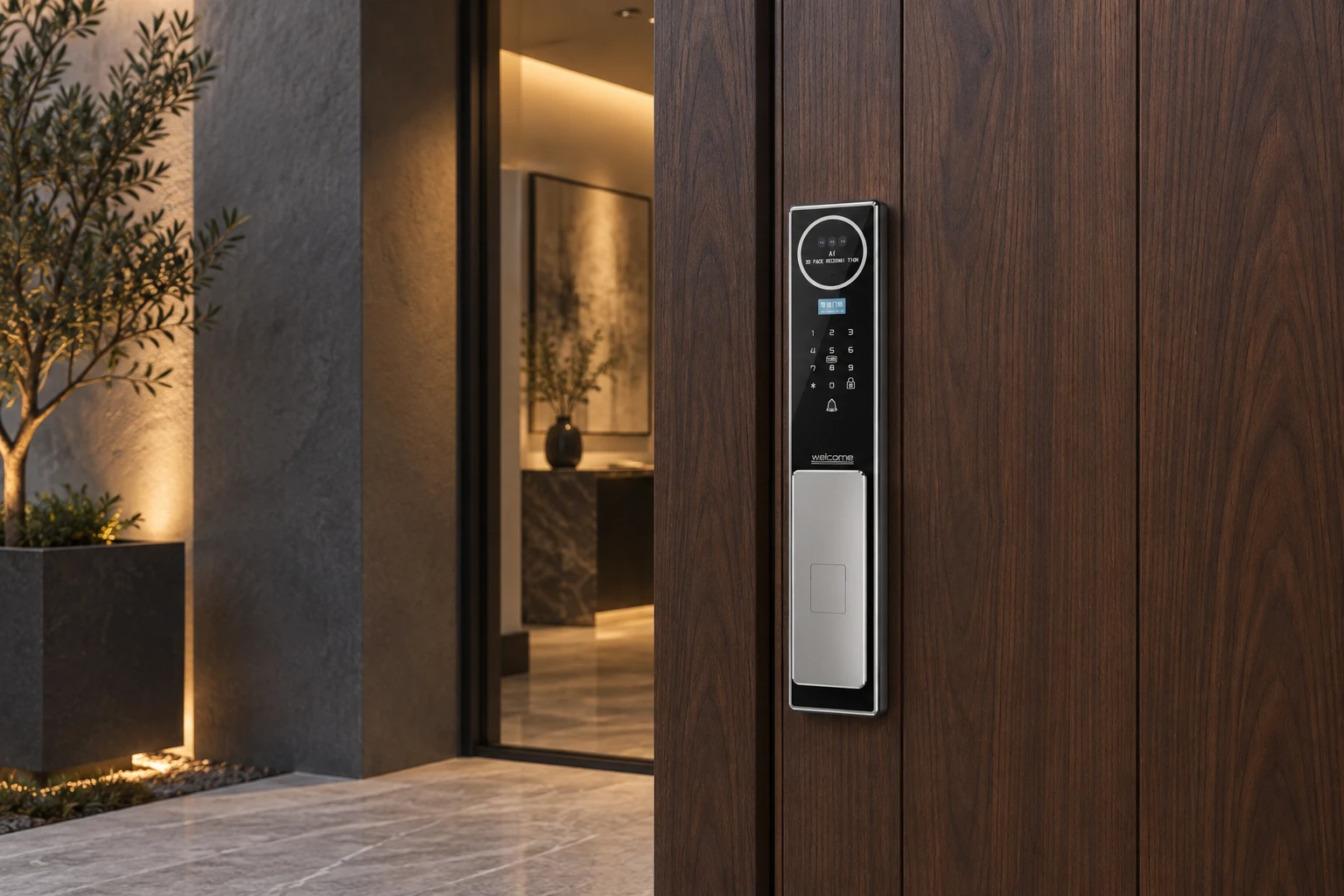

An access point in context.
The lock becomes part of the entrance hardware. Confirm the door material, opening direction and mechanical configuration together.
- Advanced Recognition: Supports Face Recognition and features a Visible Peephole for high-level security.
- Versatile Unlocking: Six methods including Face, Fingerprint, Password, IC Card, Mechanical Key, and TUYA Remote Unlock.
Choose how the door is used.
Review the documented access functions for this model. App and gateway options are version dependent and require confirmation.
- Smart Interaction: Equipped with a 0.96-inch front panel display and AI voice prompts for user guidance.
- Security Alerts: Includes an Anti-Prying Alarm and Loitering Auto-Capture function to monitor suspicious activity.

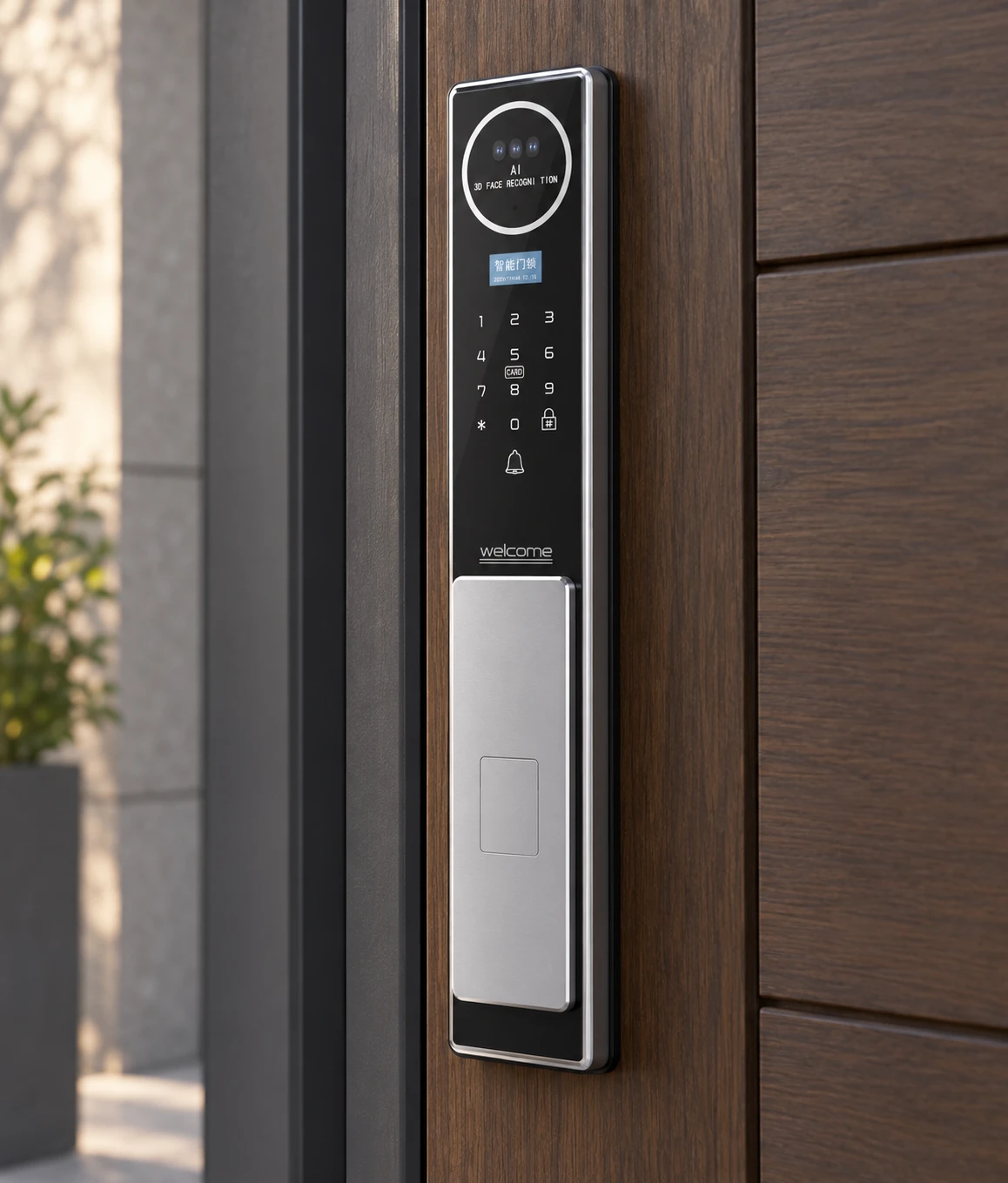

Get the hardware fit right.
Match the lock body, door thickness, strike, power arrangement and handle clearance before ordering.
- Product Size: 416.8×79.8
- Material: Aluminum Alloy
- Suitable Door Types: Wooden Door/Stainless Steel Door
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Product Model
- T18 Fully - Automatic Smart Lock
- Applicable Door Thickness
- 45-120mm
- Unlocking Methods
- Face Recognition
- Proximity Card Type
- M1 IC card
- Display
- 0.96-Inch Front Panel Display and AI Voice Prompt
- Password Storage
- The System has a built in 12-digit virtual password function
- Version
- Face Recognition&Visible Peephole Version
- Capacity
- The total quantity of fingerprints, passwords and cards is 250
- Automatic Locking
- Delayed Automatic Lock Function, the locking time can be set in the system
- Left/Right Direction
- Supports both left-hand and right-hand door installation
- Low Battery Warning
- Alarm triggered below 7.2V, supports ~100 operations after alert
- Security Features
- Anti-Prying Alarm & Loitering Auto-Capture Function; Alarm for 90s after 3 failed attempts
- Power Supply
- 4200 mAh Lithium Battery
- Charging Port
- USB Emergency Charging
- Operating Temperature
- -10℃~60℃
- Ambient Humidity
- 15%RH ~ 93%RH
- Lock Cylinder
- 6068 Grade, equipped with two keys
- Expandable Functions
- TUYA(Chinese/English)
- Standard Factory Configuration
- Lithium Battery×1
- Product Size
- 416.8×79.8
- Material
- Aluminum Alloy
- Color Options
- Arctic Silver/Jazz Black/Coffee Brown
- Lock Body
- 6068 Mechanical Lock Body(240×24/240×30/388×30/388×40)
- Suitable Door Types
- Wooden Door/Stainless Steel Door
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗T18 Fully-Automatic Face Recognition and Visible Peephole Smart Lock
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for T18 Fully-Automatic Face Recognition and Visible Peephole Smart Lock. Published details include Product Size: 416.8×79.8; Material: Aluminum Alloy; Suitable Door Types: Wooden Door/Stainless Steel Door. Use the original model material below and request the matching technical sheet.
Will this lock fit my existing door?+
Check the door construction, thickness, opening direction, lock body and fixing pattern against the selected model. A site assessment and the matching drawing are needed before reusing existing door preparation.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

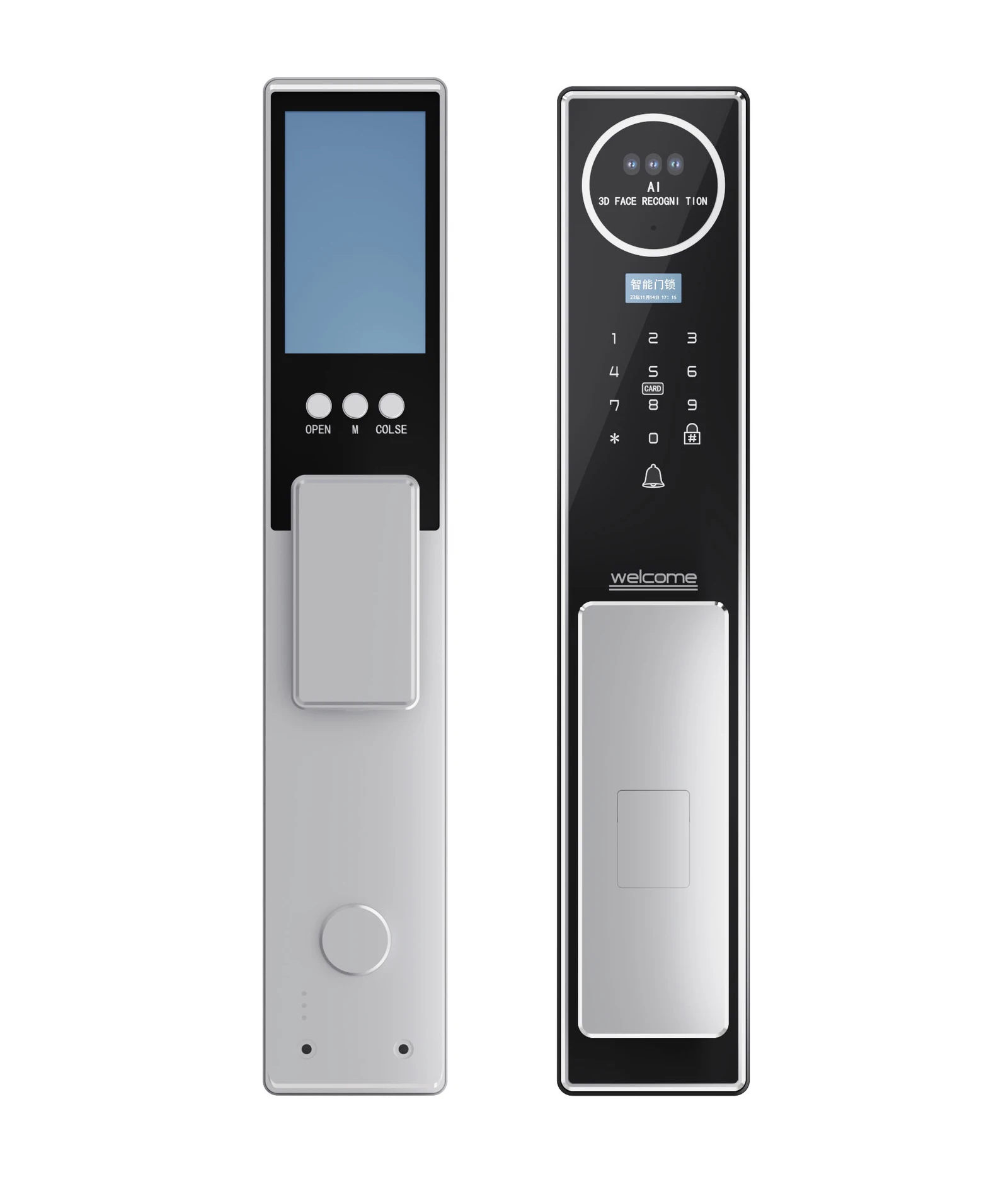

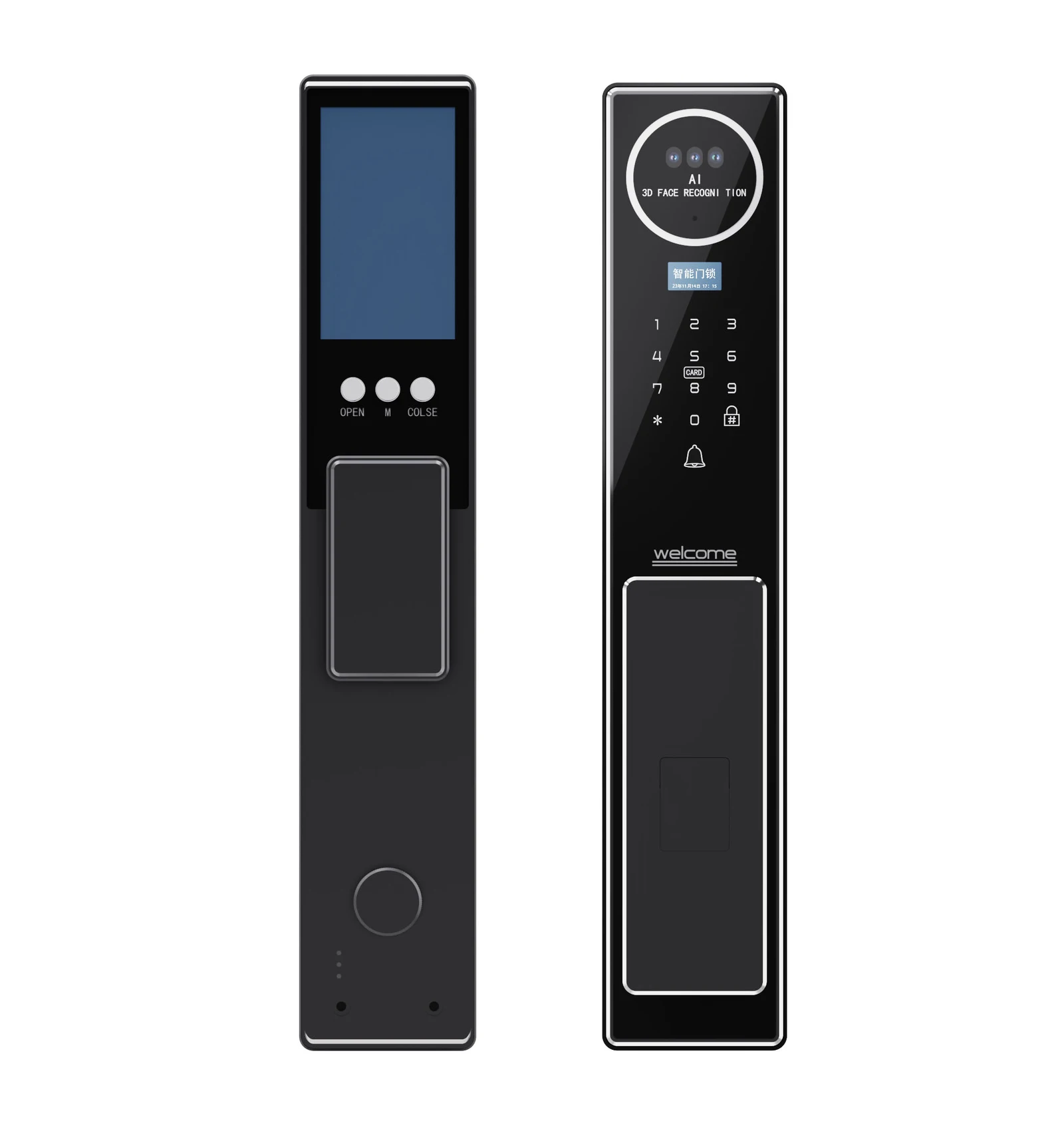

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Advanced Recognition: Supports Face Recognition and features a Visible Peephole for high-level security.
- Versatile Unlocking: Six methods including Face, Fingerprint, Password, IC Card, Mechanical Key, and TUYA Remote Unlock.
- Smart Interaction: Equipped with a 0.96-inch front panel display and AI voice prompts for user guidance.
- Security Alerts: Includes an Anti-Prying Alarm and Loitering Auto-Capture function to monitor suspicious activity.
- High Capacity Power: Powered by a 4200mAh Lithium battery with USB emergency charging capabilities.
The T18 is a flagship fully-automatic smart lock designed for modern residential security. It combines biometric face recognition with a built-in camera system with Visible Peephole, allowing homeowners to monitor their entrance in real-time.With its premium aluminum alloy and tempered glass build, it offers both aesthetic appeal and robust protection for wooden or stainless steel doors.
After-sales Service The product comes with a 2-year product warranty , plus 10-year technical support.
Minimum Order Quantity For standard products: MOQ is 50~80 units. For OEM/ODM customized orders: MOQ shall be calculated separately.
Quality Control System (Smart Lock Version)
SQA
Supplier factory audit
Component quality verification (lock body, PCB, fingerprint sensor)
IQC
Incoming material inspection
Functional test for electronic modules
RoHS & appearance check
PQC
Semi-finished assembly inspection
Motor drive & fingerprint recognition test
Power-on test and video/facial module verification
FQC
48-hour aging and full-function testing
Lock body endurance test, door thickness simulation test
Smart Lock – General Q&A
Ⅰ. Cooperation & Delivery：
Q1. Are you a factory or a trading company?
A: We are a direct manufacturer with complete production lines and an in-house R&D team, supporting OEM / ODM customization and bulk orders.
Q2. What is the delivery time?
A: Standard models take around 3-5 working days; customized models take about 15–40 days depending on functions and quantity.
Q3. What is the packaging and shipping method?
A: Standard orders use universal packaging boxes. For quantities over 2,000 units, custom color boxes are available. Products are shipped by express or sea freight depending on order size.
Ⅱ. Battery & Power：
Q1. How long does one set of batteries last?
A: Under normal use (5–10 openings per day), the batteries can last around 6–12 months.
Q2. What if the smart lock runs out of power?
A: You can use an emergency power supply, such as a power bank (Type-C or 9V battery), to temporarily power the lock and unlock it.
Q3. Does the smart lock support rechargeable batteries?
A: Yes, but we recommend using reliable branded batteries to avoid overcharging or deep discharge.
Ⅲ. Warranty & Support：
Q1. What is the warranty period for smart locks?
A: All models come with a one-year warranty.
Q2. How do you handle after-sales service for overseas customers?
A: For every 1,000 smart locks ordered, we include one set of key spare parts for replacement use.
Q3. Do you provide installation guidance?
A: Yes, we provide detailed installation videos and online technical support.
Ⅳ. Durability & Stability：
Q1. What is the lifespan of the fingerprint sensor?
A: The fingerprint sensor can handle more than 200,000 recognition cycles.
Q2. What is the lifespan of the motor and lock body?
A: The mechanical lock body can endure over 100,000 opening and closing cycles.
Q3. Are smart locks waterproof?
A: Outdoor models have an IP55 waterproof rating, capable of withstanding light rain.
Ⅴ. Features & Operation：
Q1. How many fingerprints can be stored?
A: Most models can store between 100–250 fingerprints.
Q2. Does it support temporary passwords?
A: Yes, most models support one-time passwords that can be set remotely through the APP or management platform.
Q3. Can the lock be controlled remotely?
A: Yes, remote unlocking via WiFi / APP / gateway is supported depending on the model.
Q4. What unlocking methods are available?
A: Fingerprint, password, IC card, mechanical key, APP, and temporary password.
Q5. Can the lock connect to smart home systems?
A: Yes, it supports integration with platforms such as Tuya, TTLock, and PLC systems.
Ⅵ. Customization & Design：
Q1. Can I customize my own logo?
A: Yes, logo customization is available with a minimum order quantity of 500 sets.
Q2. Can I customize the appearance or color?
A: Yes, both panel color, material, and packaging can be customized.
Q3. Do you support APP customization?
A: Yes, OEM APP and branded interface customization are available, based on company specifications.
Ⅶ. Quality & Warranty：
All products comply with the 7S Quality Management System and come with a one-year warranty and video installation guidance service.
All products comply with the 7S quality management system and come with a one-year warranty and installation support.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
