LEONDARX / Indoor Monitor

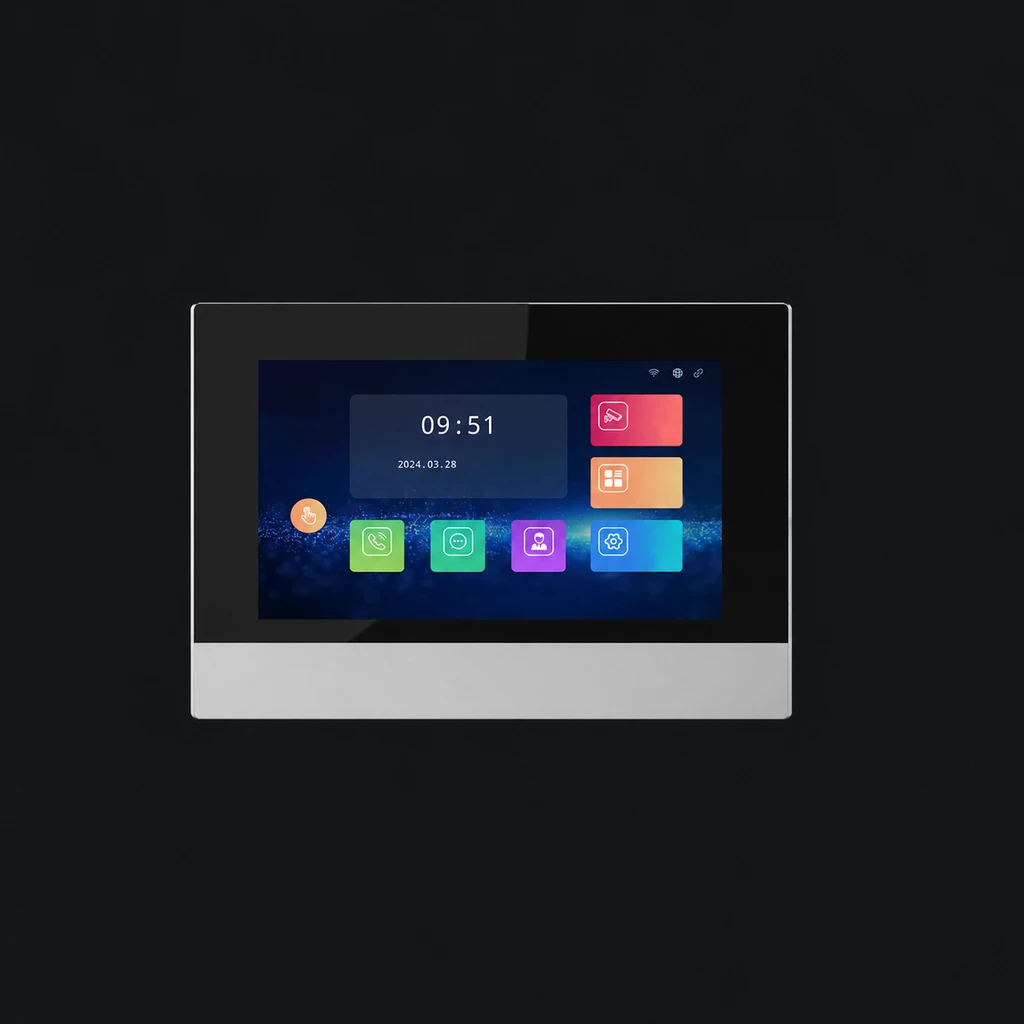

7 Inch Display Digital Indoor Monitor With Touch Screen
This digital indoor monitor is equipped with a 7-inch HD display and a capacitive touch screen, with optional mechanical buttons.
The answer point. Inside the home.
Explore the application, daily use and installation requirements for this model.

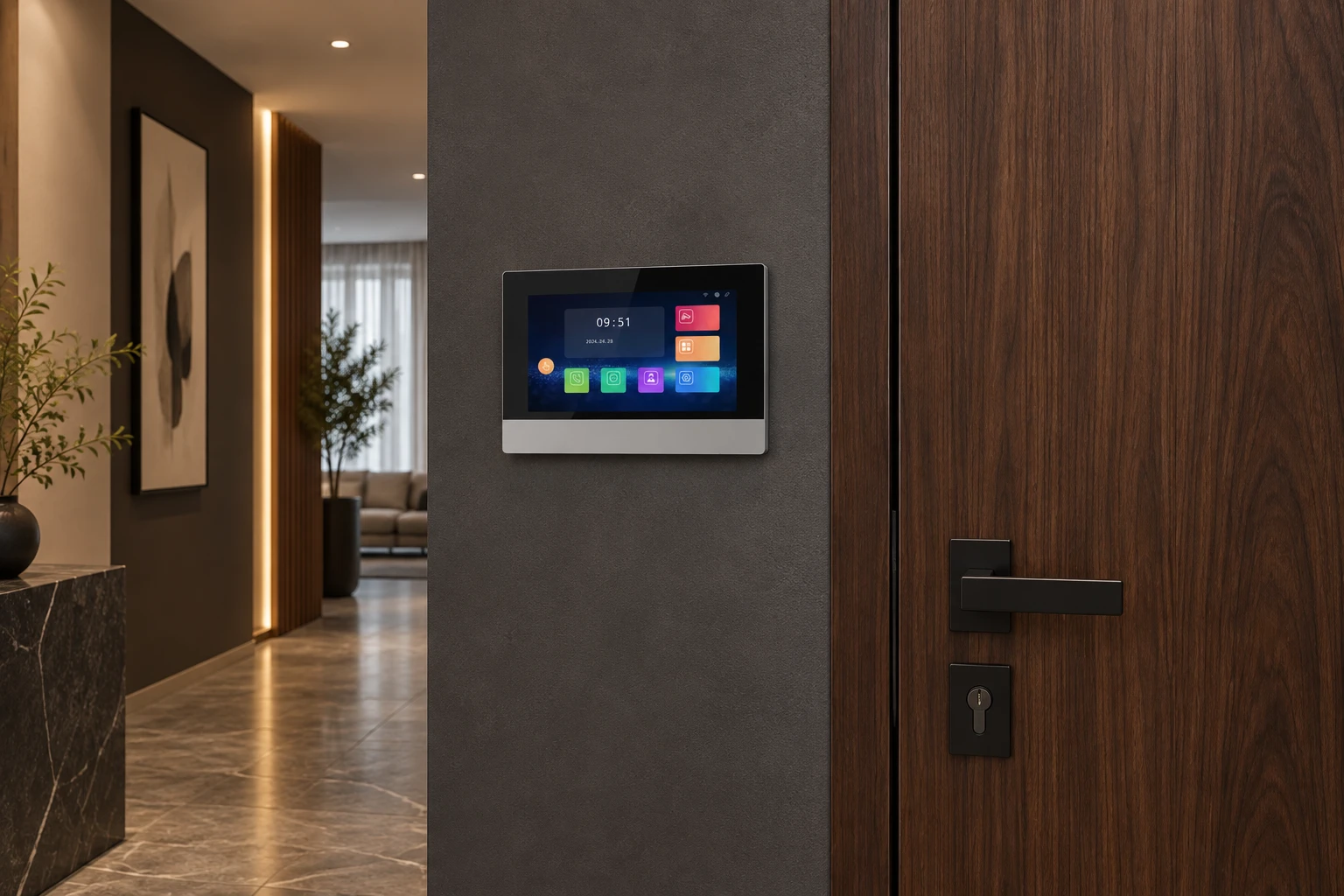

An indoor point of connection.
Place the indoor station where residents can reach it easily. Match it to the building’s selected intercom system.
- H19 is designed for convenient and secure indoor intercom and access control linkage.
- It has a 7-inch HD display with clear and stable digital video, and a capacitive touch screen for easy operation.

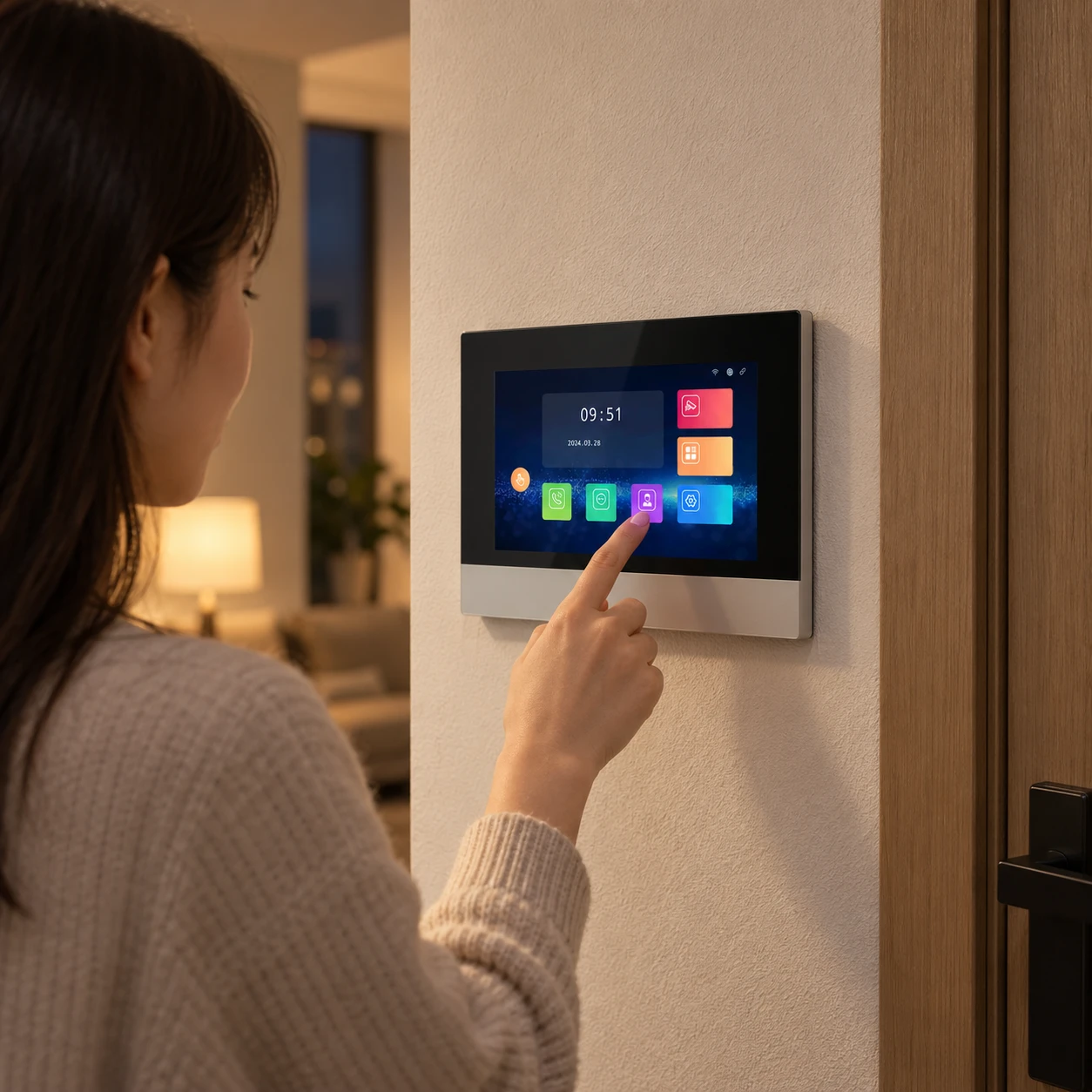

Designed for everyday answering.
Review the model’s documented communication and control functions. Screen-based functions apply only to models with a display.
- It supports full-duplex voice intercom, POE and independent power supply, and integrates functions such as remote upgrade, inter-home call and elevator linkage for practical use.

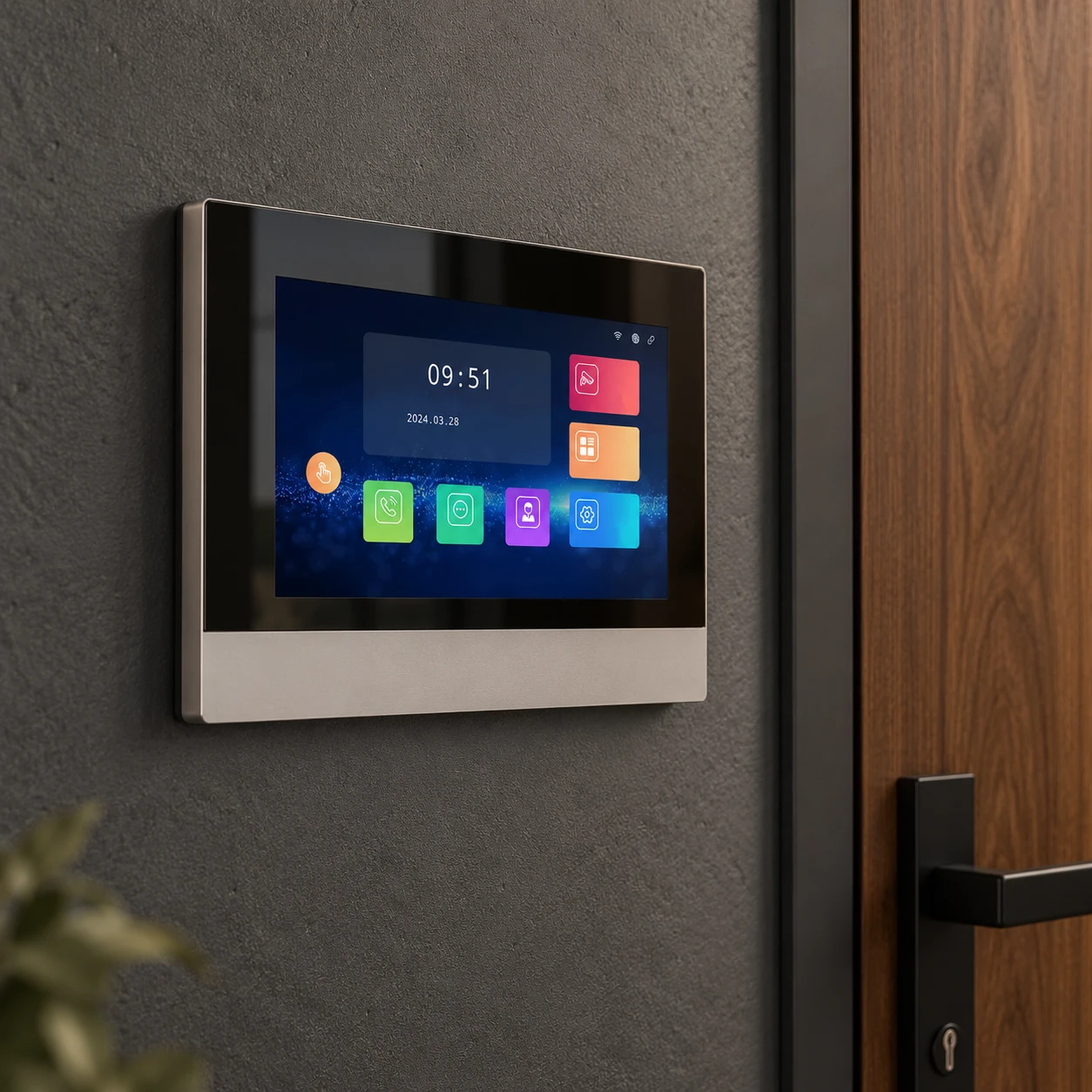

Fit the station to the installation.
Check the mounting area, power and communications interface, cable access and matching outdoor equipment.
- Network Interface: Standard Ethernet interface, RJ45
- Communication Mode: TCP/IP
- Power Supply (POE): Support POE power supply, 12–18V non-standard POE switch
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Display
- 7-inch HD Display
- Communication Mode
- TCP/IP
- Power Supply (POE)
- Support POE power supply, 12–18V non-standard POE switch
- Independent Power Supply
- Ordinary 100M switch + 12–18V independent power supply
- Power Supply Parameter
- 12V 1A
- Power Consumption
- <10W
- Operating System
- Linux
- After-sales Service
- Remote upgrade service, convenient after-sales maintenance
- Installation
- Wall-mounted
- Extended Functions
- Support inter-home call and elevator linkage function
- Resolution
- 1024×600
- Touch Screen
- Capacitive touch screen
- Optional Buttons
- Mechanical buttons
- Video Quality
- Digital HD video, stable and clear
- Intercom Function
- Full-duplex voice intercom
- Technology
- Adopts low-power technology, energy-saving and reliable
- Network Interface
- Standard Ethernet interface, RJ45
- Design
- Full digital design
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗7 Inch Display Digital Indoor Monitor With Touch Screen
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 7 Inch Display Digital Indoor Monitor With Touch Screen. Published details include Network Interface: Standard Ethernet interface, RJ45; Communication Mode: TCP/IP; Power Supply (POE): Support POE power supply, 12–18V non-standard POE switch. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

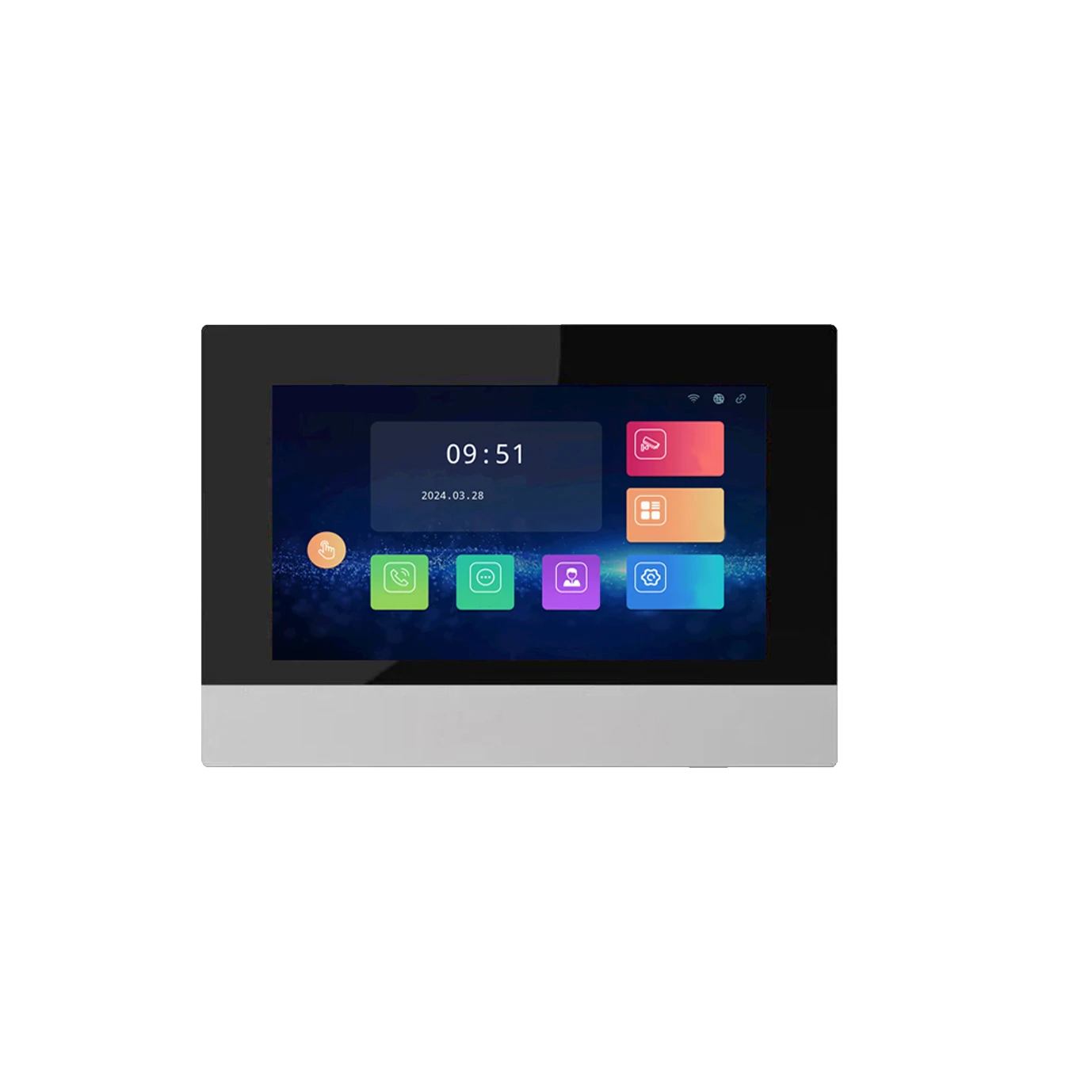

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
H19 is designed for convenient and secure indoor intercom and access control linkage. It has a 7-inch HD display with clear and stable digital video, and a capacitive touch screen for easy operation. It supports full-duplex voice intercom, POE and independent power supply, and integrates functions such as remote upgrade, inter-home call and elevator linkage for practical use.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
