LEONDARX / Indoor Monitor

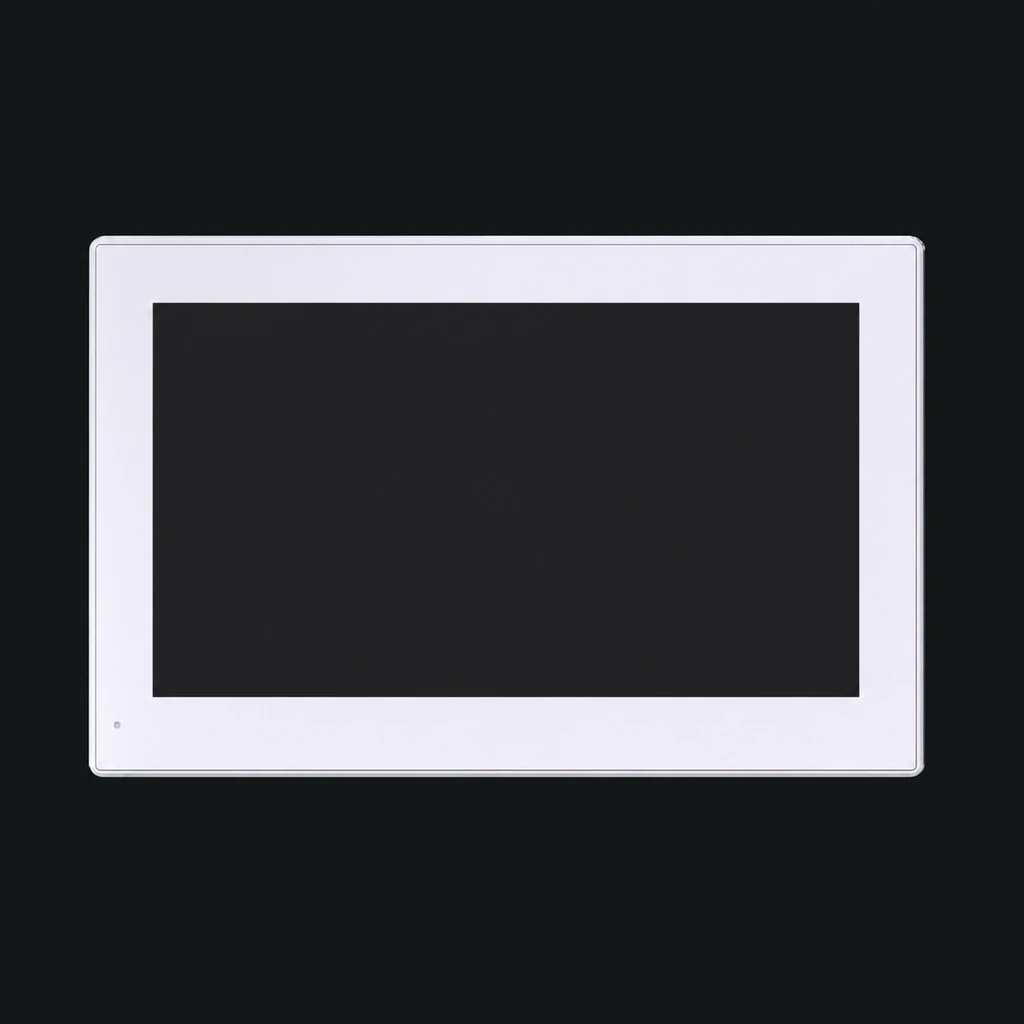

7 Inch Indoor Station With Touch Video
A 7-inch indoor video intercom station for the resident answer point. Confirm the matching outdoor station, supply and communication interface.
The answer point. Inside the home.
Explore the application, daily use and installation requirements for this model.

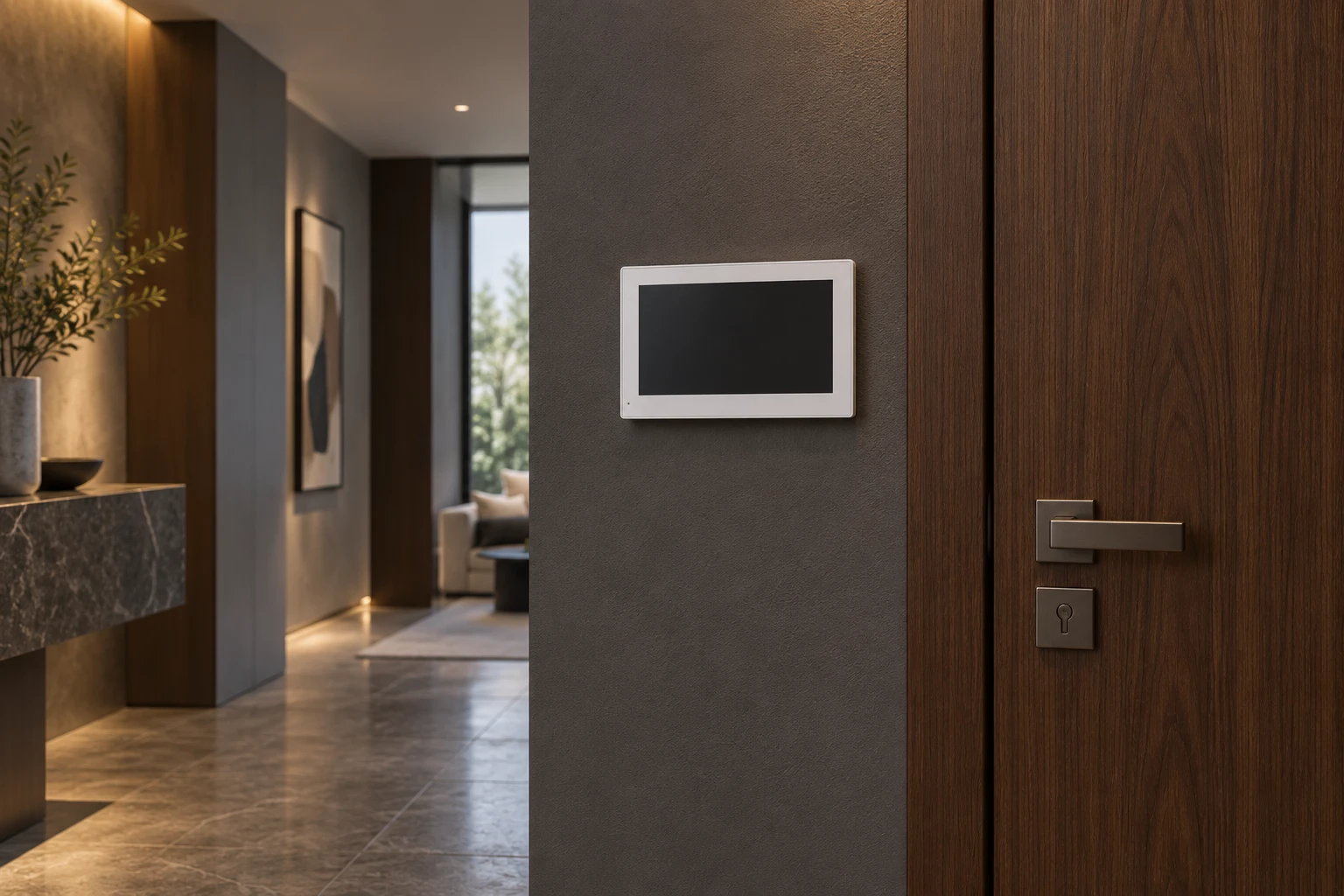

An indoor point of connection.
Place the indoor station where residents can reach it easily. Match it to the building’s selected intercom system.
- Power Consumption: ≤1.5W in standby mode ≤4W during operation
- Operating System: Embedded Linux OS

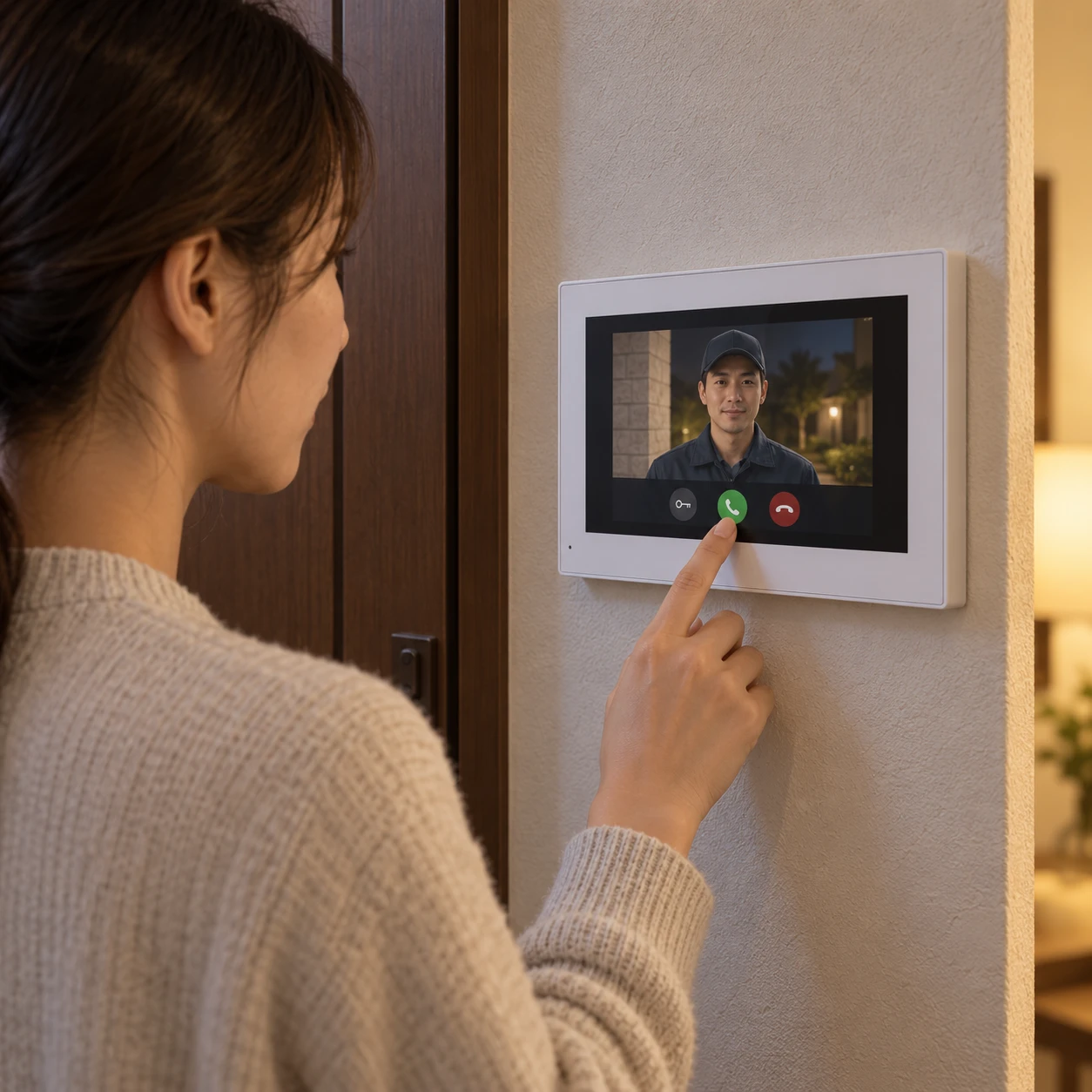

Designed for everyday answering.
Review the model’s documented communication and control functions. Screen-based functions apply only to models with a display.
- CCTV Viewing: Supports real-time CCTV viewing, up to 32 displays for single household
- Recording & Storage: Supports image/video recording and storage, max capacity 4; up to 100 images storable

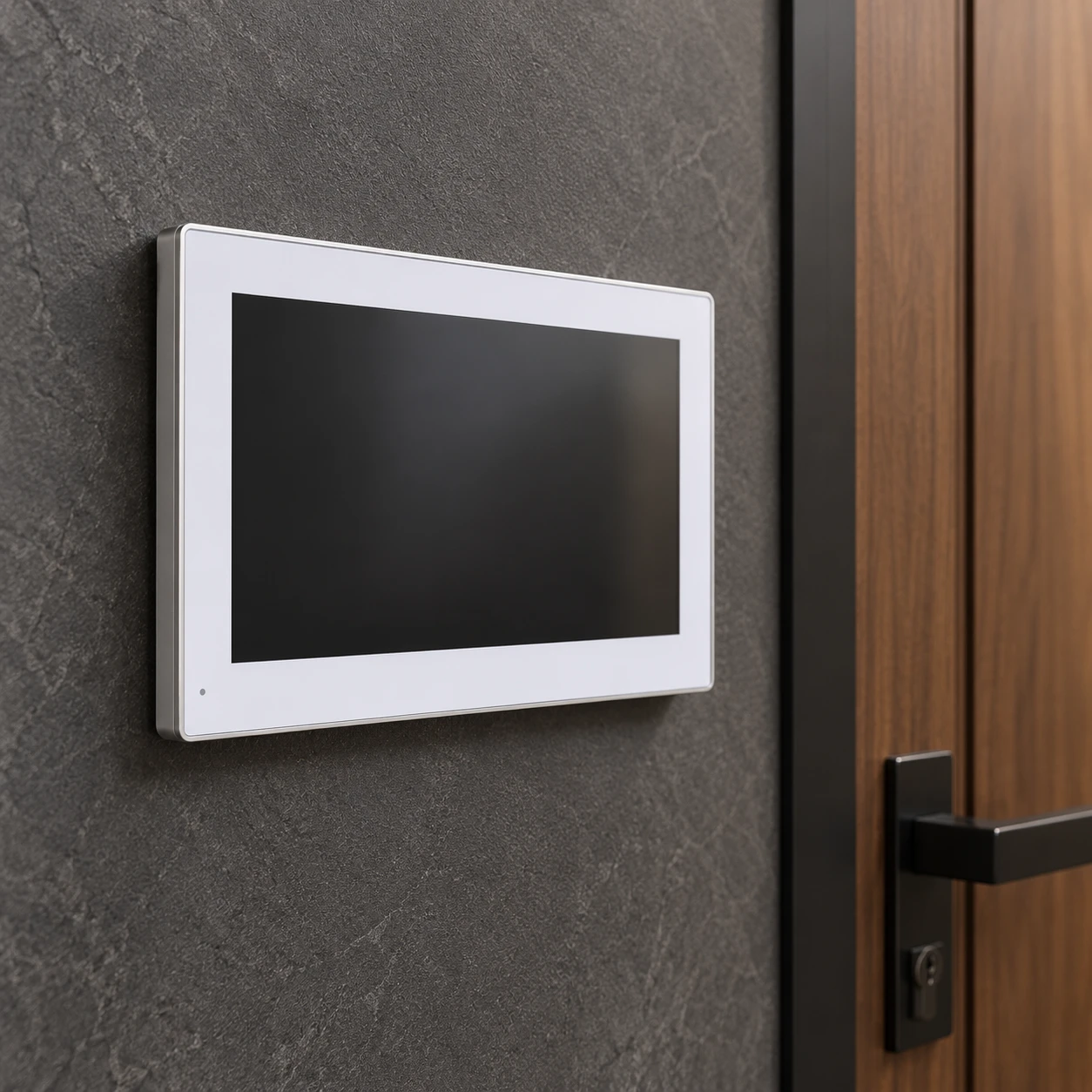

Fit the station to the installation.
Check the mounting area, power and communications interface, cable access and matching outdoor equipment.
- Power Consumption: ≤1.5W in standby mode ≤4W during operation
- Material & Craftsmanship: ABS + tempered glass
- Dimensions: 200×140×16mm
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Power Consumption
- ≤1.5W in standby mode ≤4W during operation
- Dimensions
- 200×140×16mm
- Installation Method
- Wall-mounted
- Operating System
- Embedded Linux OS
- CCTV Viewing
- Supports real-time CCTV viewing, up to 32 displays for single household
- Recording & Storage
- Supports image/video recording and storage, max capacity 4; up to 100 images storable
- TF Card Compatibility
- Compatible with TF memory cards, up to 1000 images or 15-second videos storable
- Display Screen
- 7-inch HD display, resolution 1024*600
- Touch Screen Type
- Capacitive touch screen, supports multi-touch, sensitive operation
- Material & Craftsmanship
- ABS + tempered glass
- Operating Temperature
- -20°C to 60°C
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗7 Inch Indoor Station With Touch Video
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 7 Inch Indoor Station With Touch Video. Published details include Power Consumption: ≤1.5W in standby mode ≤4W during operation; Material & Craftsmanship: ABS + tempered glass; Dimensions: 200×140×16mm. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

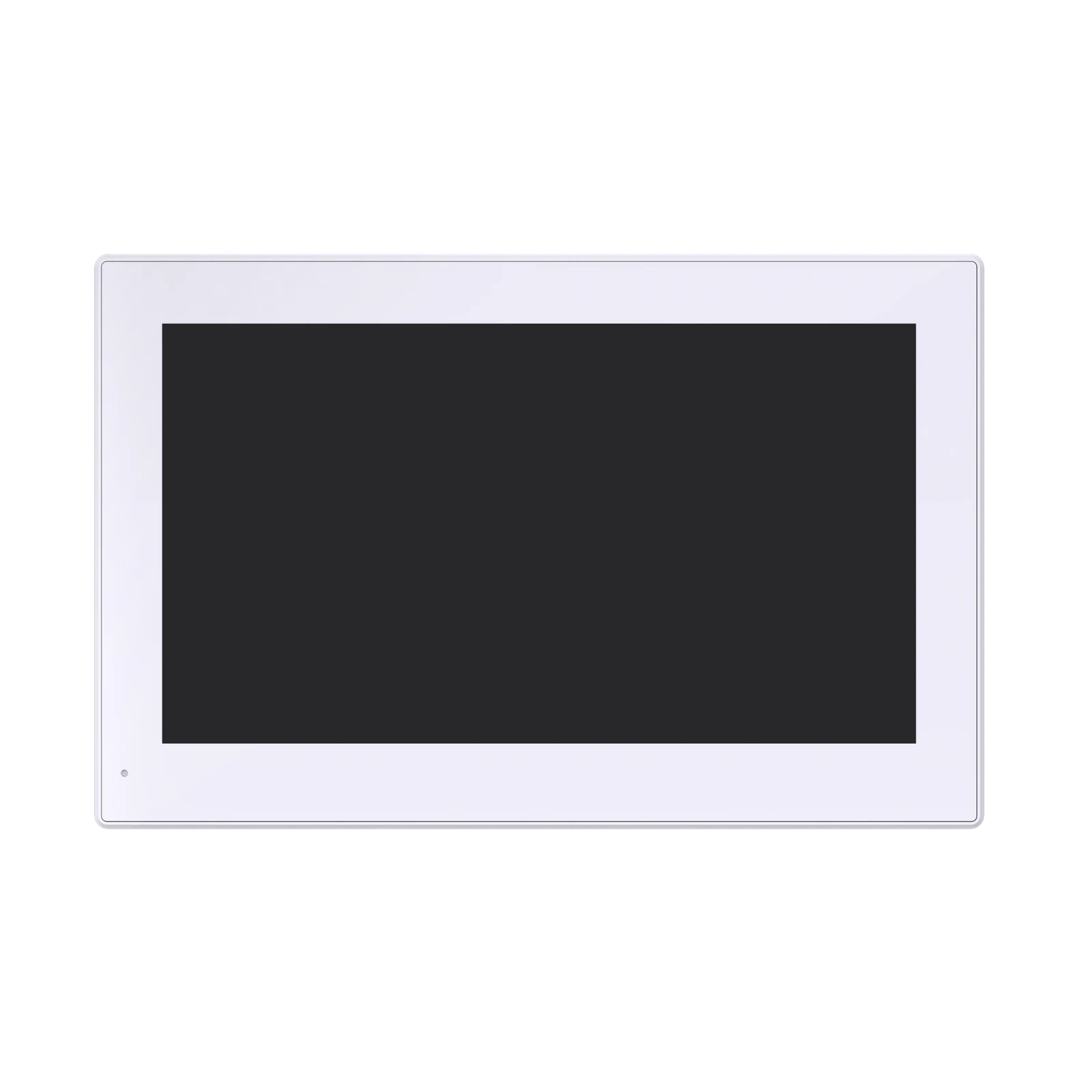

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
