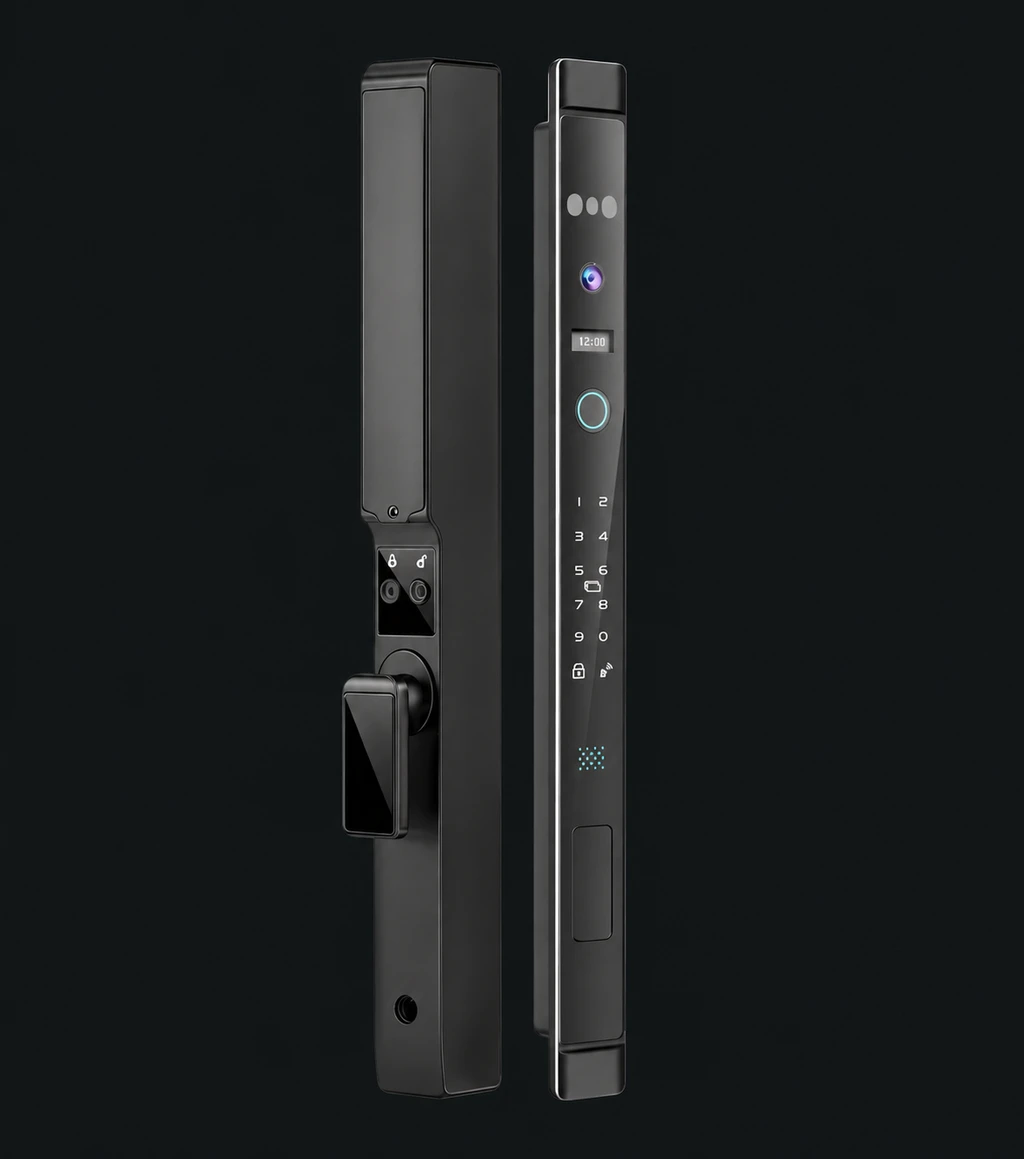

LJ09-C Automatic Narrow Frame Smart Lock
The LJ09-C Automatic Narrow Frame Smart Lock is a state-of-the-art security solution with multiple unlocking methods including fingerprint recognition, IC cards, and mobile apps.
Access control. For the door profile.

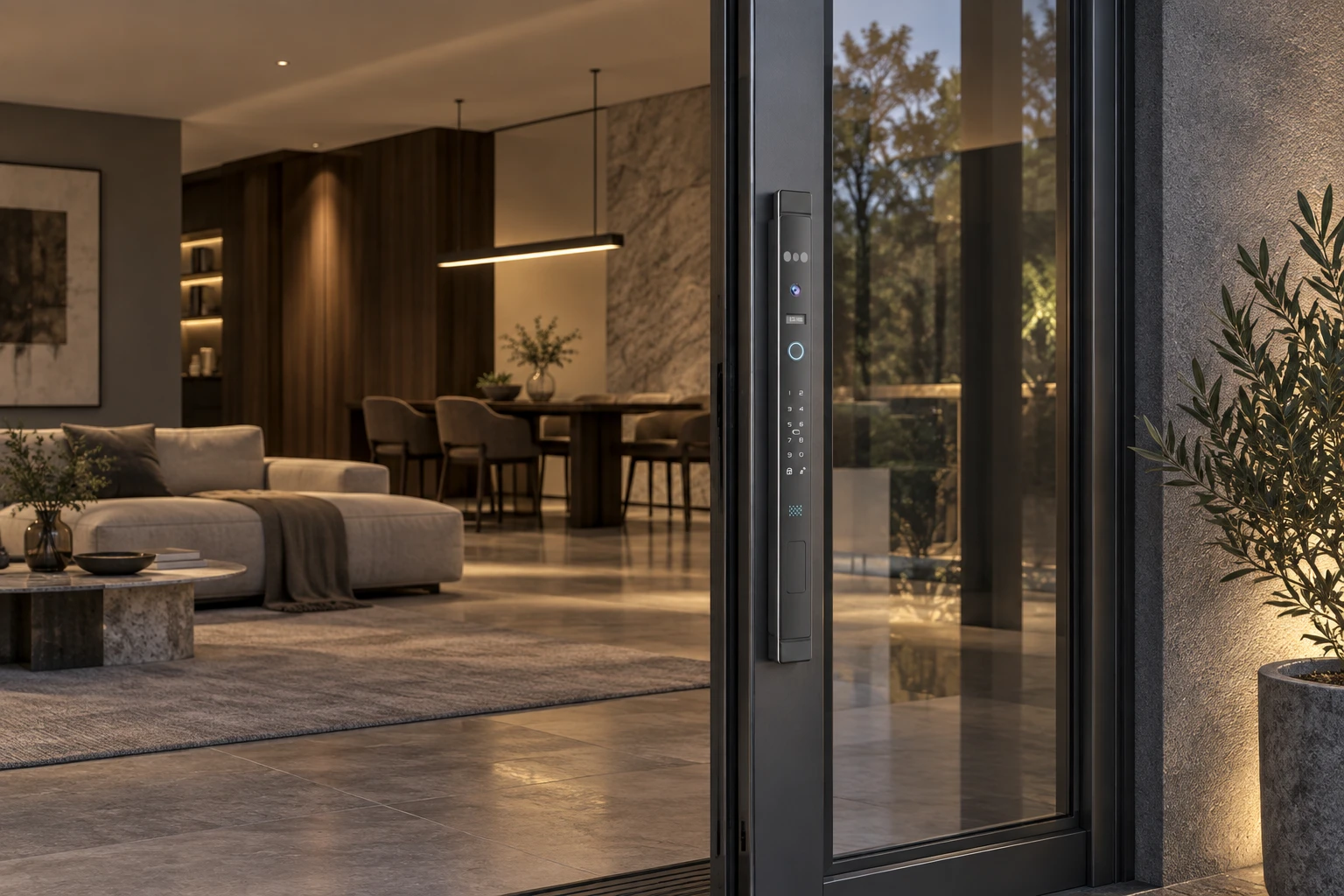

Explore the application, daily use and installation requirements for this model.

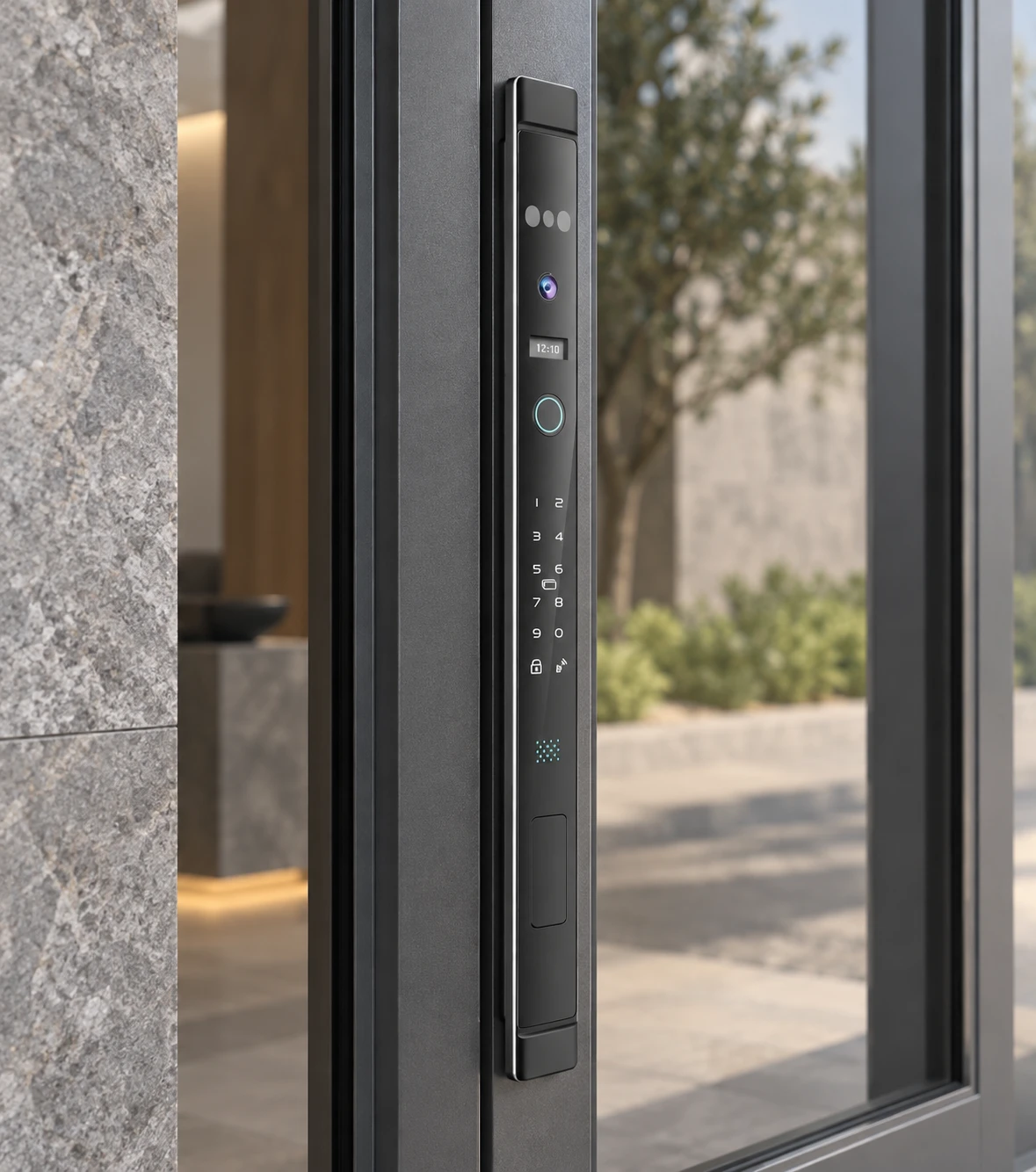

A slim profile, properly installed.
Plan the lock on the door’s aluminium stile, with the handle and strike positioned for the opening direction.
- Multiple unlocking methods: fingerprint, IC card, password, and mobile app
- Emergency power： support with a 5V power bank

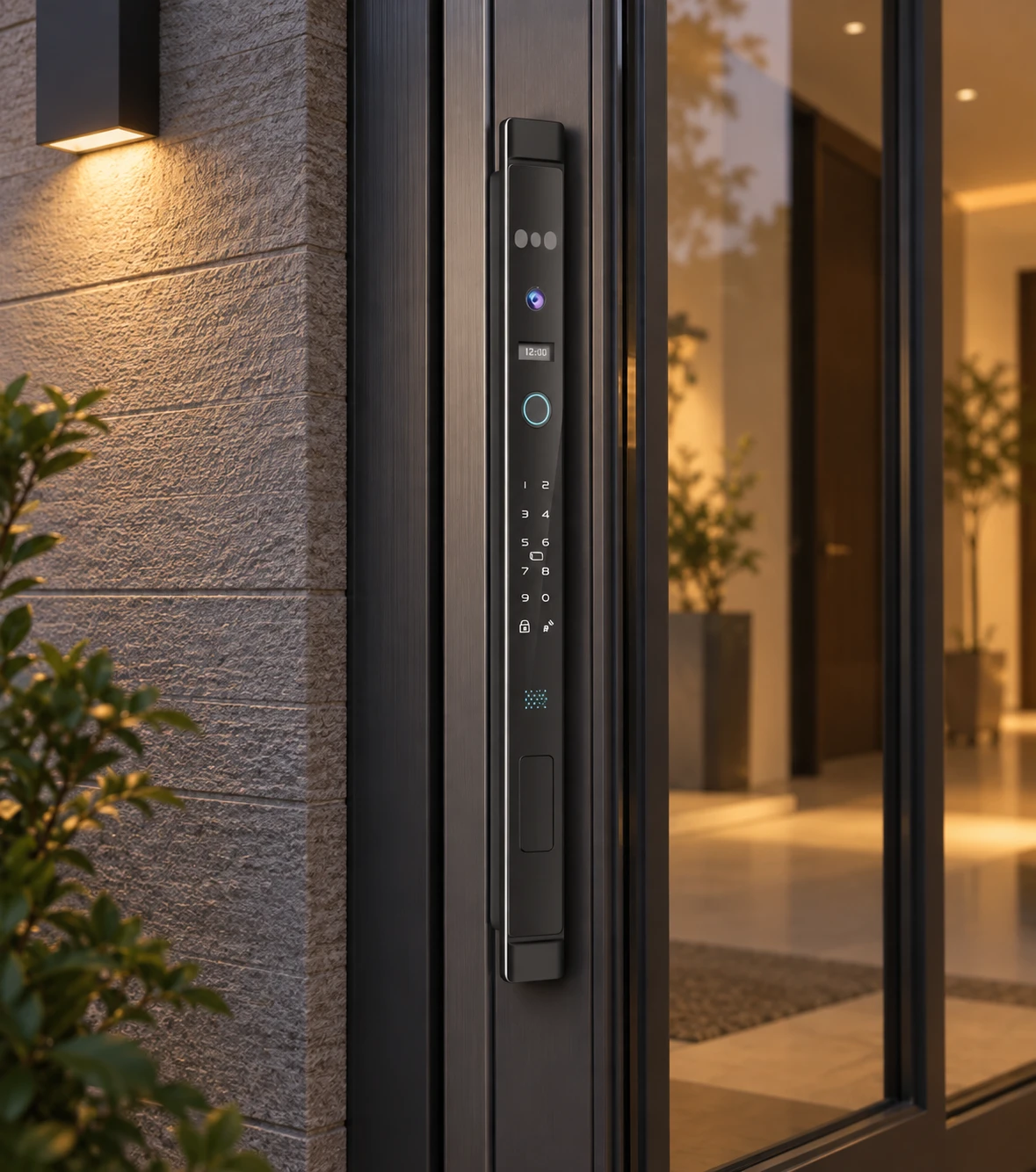

Define everyday access.
Select from this model’s documented access functions, then confirm credential management and the required version.
- Slim Design：Designed for narrow frame doors with a sleek and space-saving structure
- Smart Connectivity：Optional support for mobile app WiFi and Bluetooth unlocking
Match the lock to the door.
Check profile width, door thickness, lock body, strike and handle clearance. Confirm the exterior and interior assemblies together.
0Review model documents ↗The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.

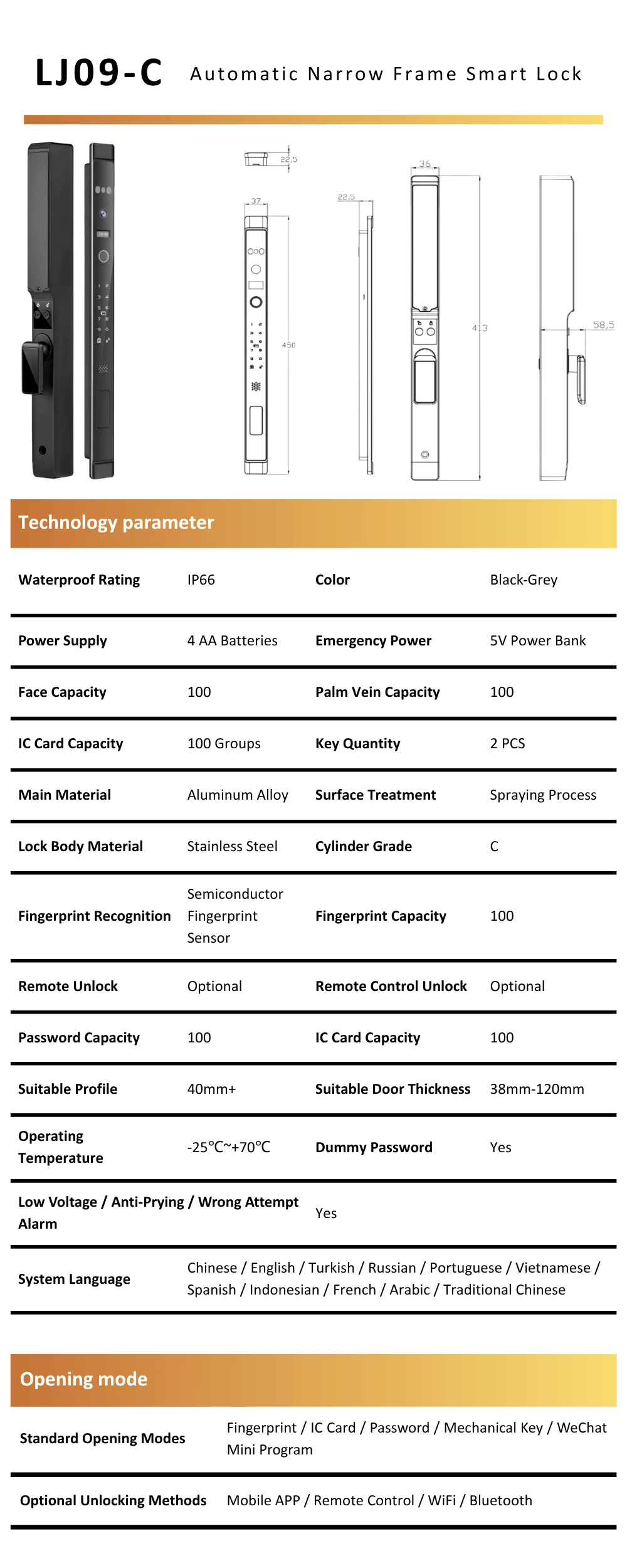

The original manufacturer provides this model’s specifications as illustrated detail sheets. Open the original material below or request a matching technical sheet.
Open model material ↗COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗LJ09-C Automatic Narrow Frame Smart Lock
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for LJ09-C Automatic Narrow Frame Smart Lock. Use the original model material below and request the matching technical sheet.
Will this lock fit my existing door?+
Check the door construction, thickness, opening direction, lock body and fixing pattern against the selected model. A site assessment and the matching drawing are needed before reusing existing door preparation.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

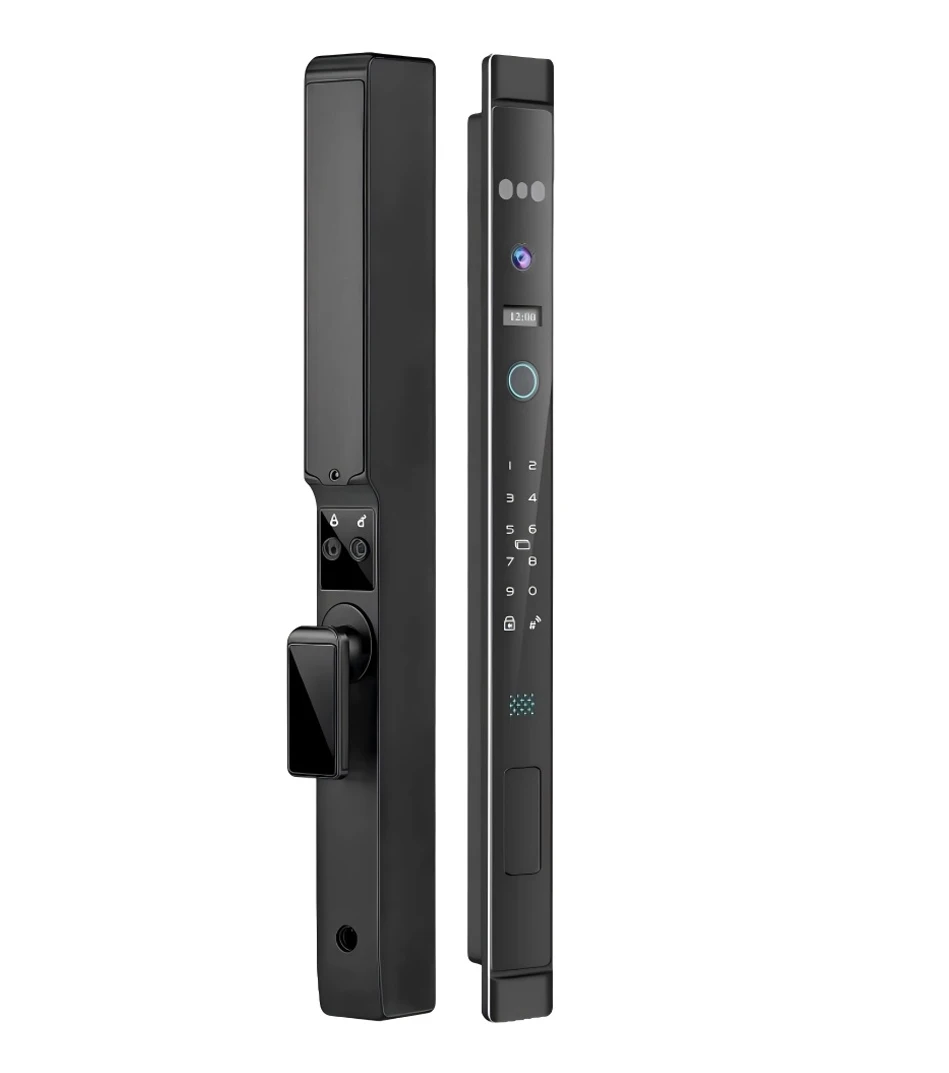

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Multiple unlocking methods: fingerprint, IC card, password, and mobile app
- Waterproof rating: IP66 for all-weather performance
- Emergency power： support with a 5V power bank
- Slim Design：Designed for narrow frame doors with a sleek and space-saving structure
- Smart Connectivity：Optional support for mobile app WiFi and Bluetooth unlocking
- Multi Language System：Supports multiple languages for broader usability
The LJ09-C Automatic Narrow Frame Smart Lock is designed to provide both convenience and security. It supports a wide range of unlocking methods including fingerprint scanning, IC card access, password entry, and mobile app control. The lock is built to withstand various weather conditions with its IP66 waterproof rating, making it ideal for both residential and commercial use.
Crafted from durable aluminum alloy and stainless steel, the lock ensures long-lasting performance and reliability. The lock can store up to 100 fingerprints, 100 IC cards, and 100 passwords, offering secure and efficient access management for multiple users. Additionally, it features an emergency power supply through a 5V power bank, as well as anti-prying and wrong attempt alarms to enhance security. With a suitable door thickness range of 38mm-120mm, this smart lock is versatile and easy to install, providing advanced protection for your property.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
