LEONDARX / SBUS Smart Panel

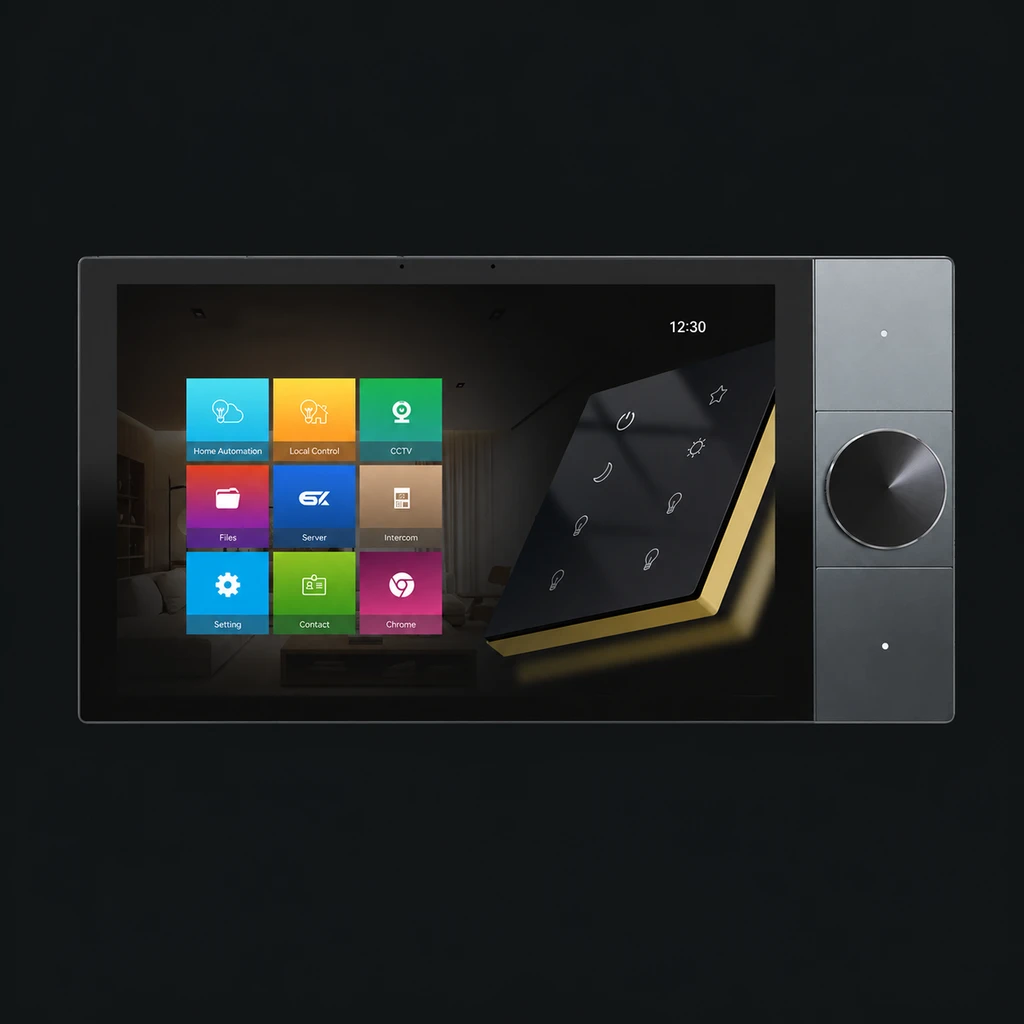

Leondarx SK Smart Control Panel
The SK Pad is a smart control panel designed for integrated home and building automation.
Room control. Within easy reach.
Explore the application, daily use and installation requirements for this model.

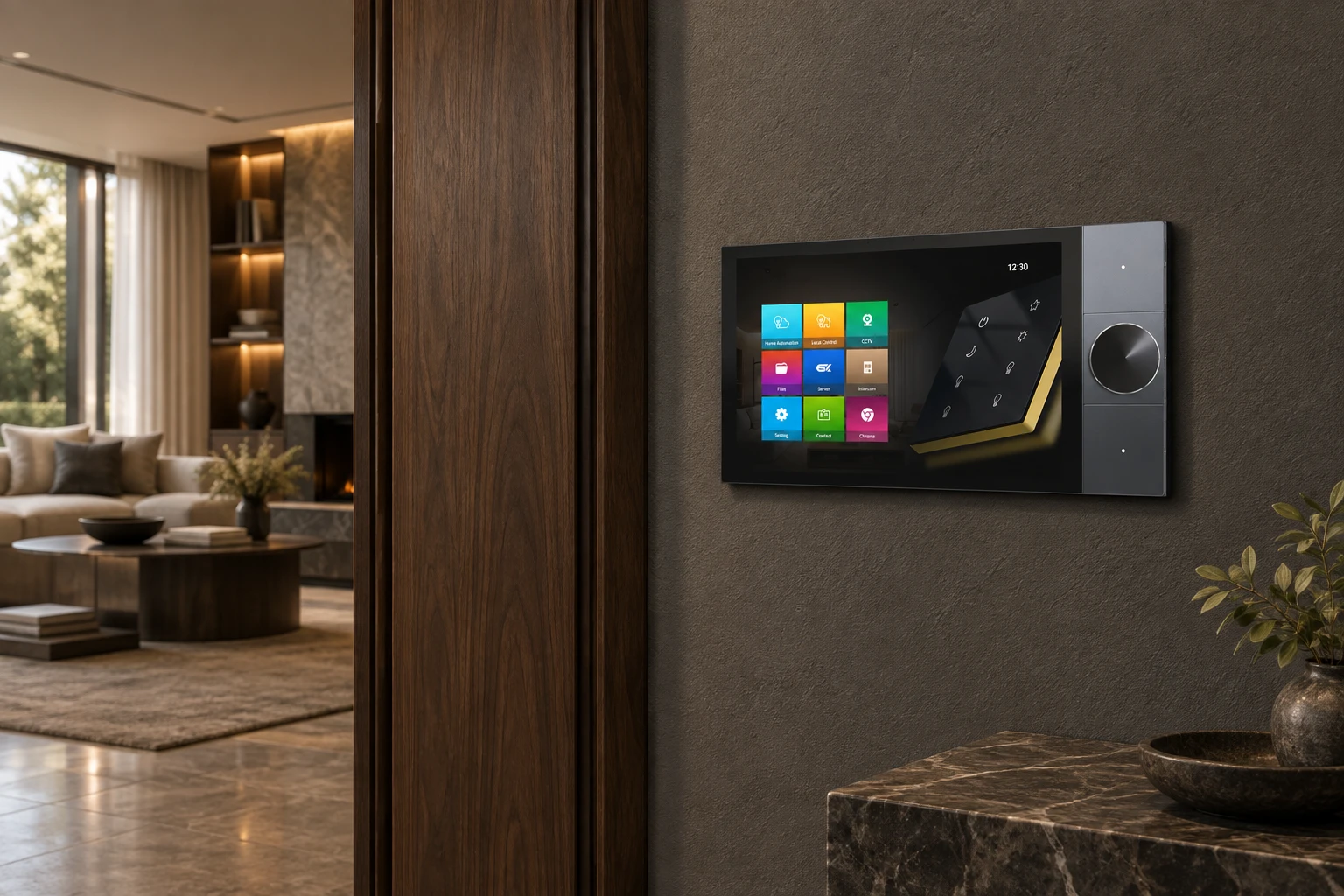

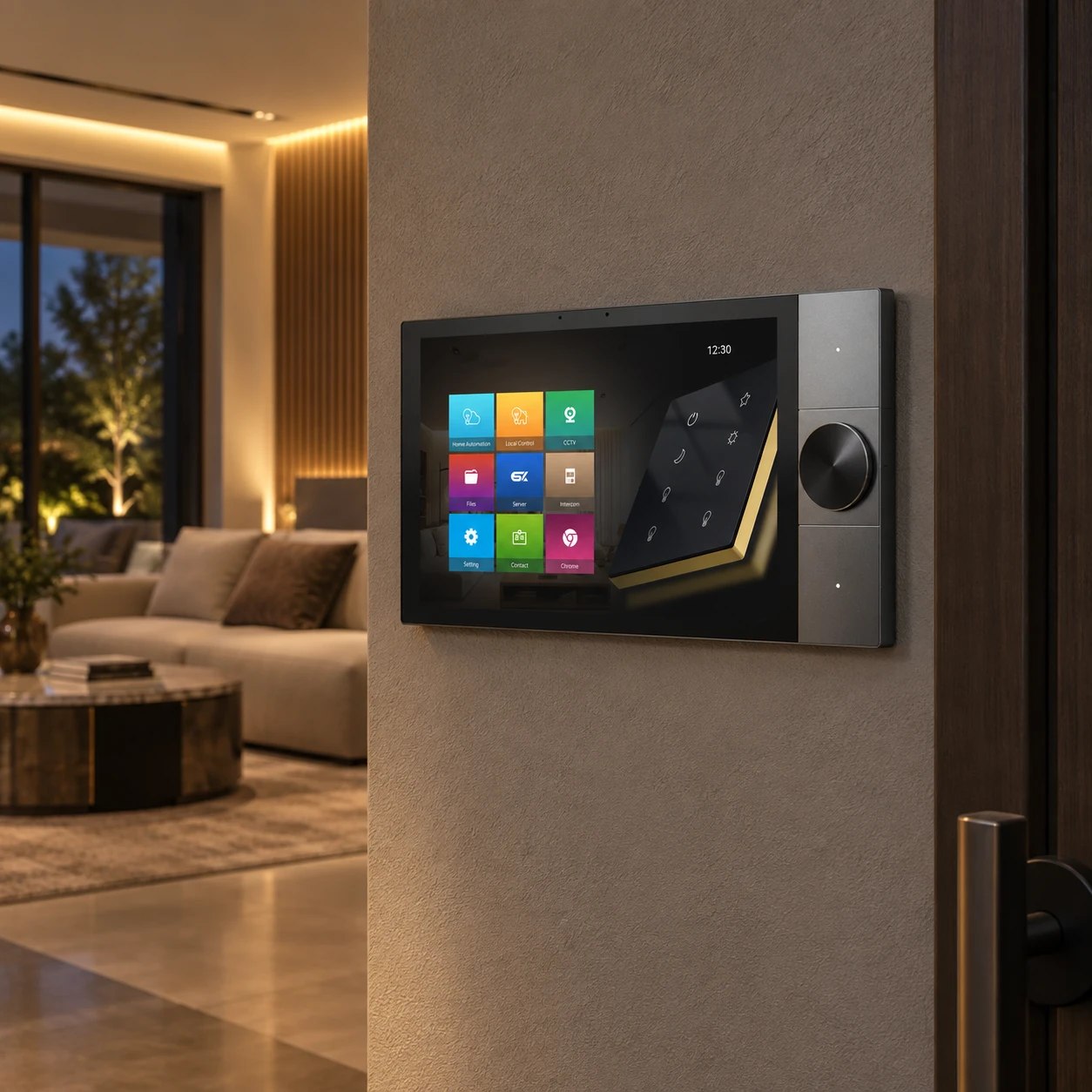

Control at the room entrance.
Place the control device at a useful point in the room. Match the model and its configured functions to the lighting or automation brief.
- Processor: Cortex-A53 quad-core 1.5GHz for smooth performance
- Display: 10.1-inch HD IPS LCD with 1280x800 resolution
Choose the functions for the room.

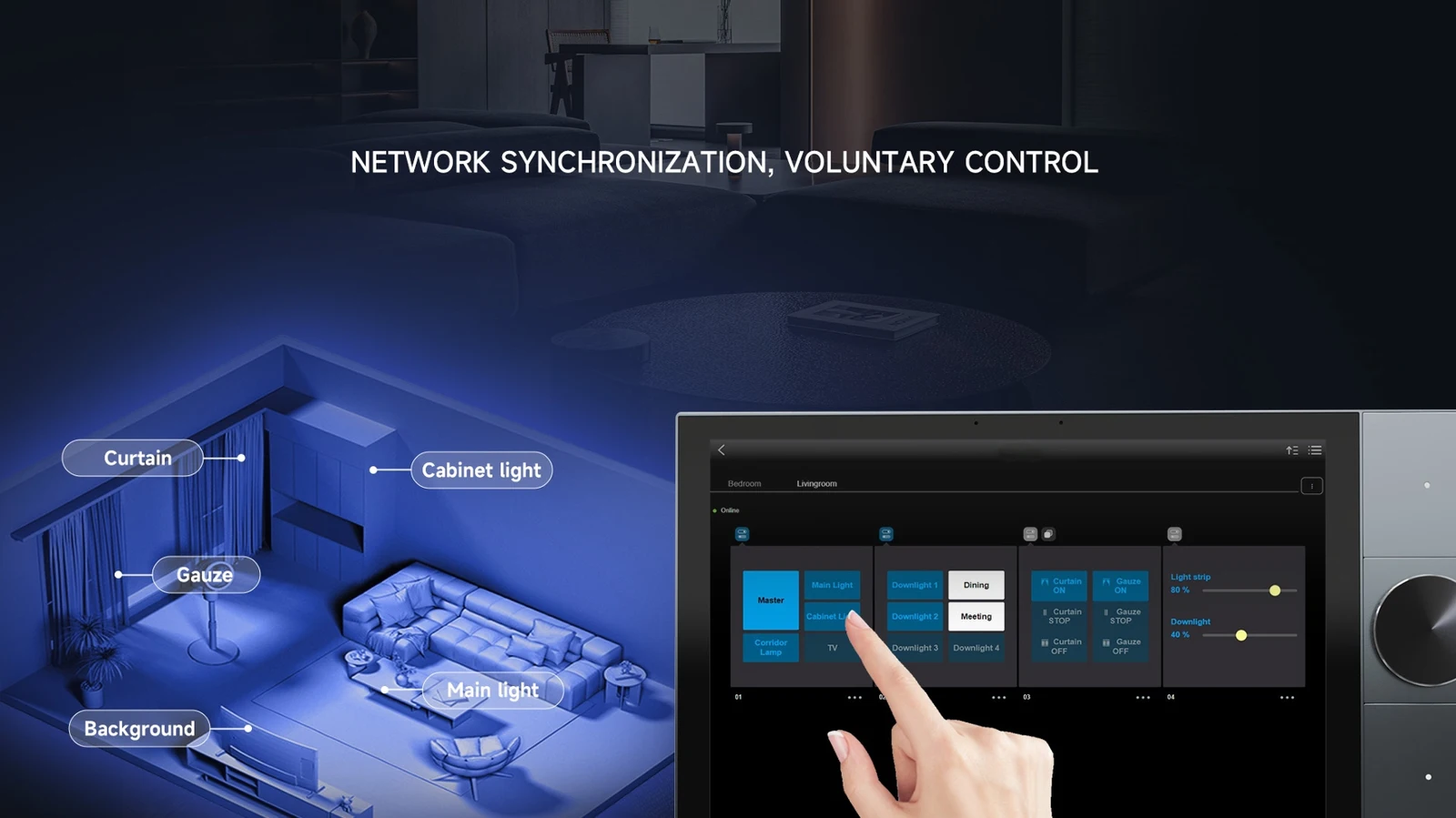

Review the supported controls and interfaces for this version. Scene functions and connected equipment depend on the selected system.
- Connectivity: Dual-band 5G+2.4G Wi-Fi and wired network port
- Wireless Support: Bluetooth for speaker and device pairing

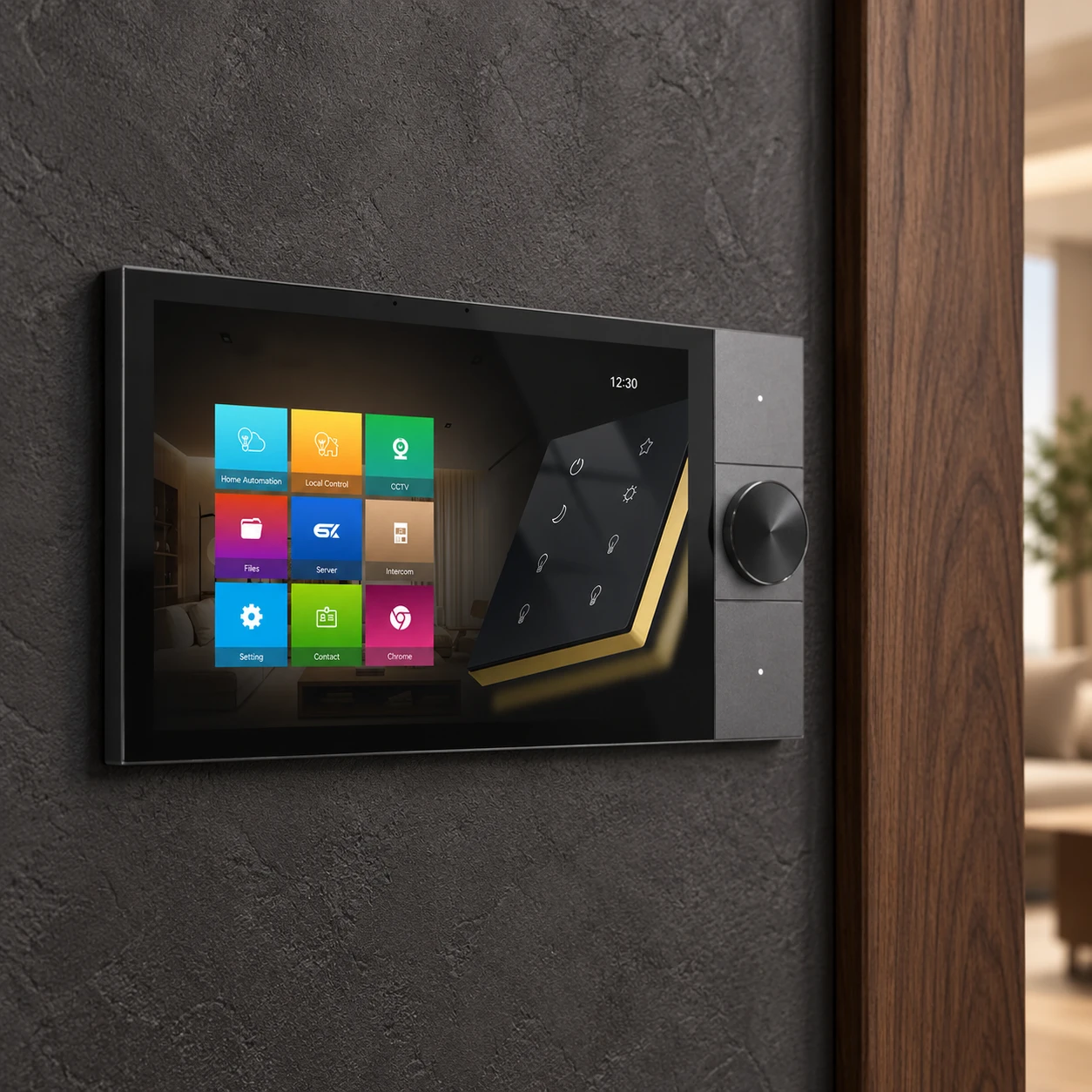

Plan the panel and infrastructure.
Confirm wall-box dimensions, supply, bus or network connection and the integration scope before installation.
- External Interface: RS485 interface
- Panel Dimensions: 289×156×11 mm
- Installation Size: 86×86×70 mm
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Product Name
- SK Pad
- Installation Size
- 86×86×70 mm
- Control Keys
- 1 rotary knob + 2 physical keys
- Processor
- Cortex-A53 quad-core 1.5G
- Display
- 10.1-inch HD IPS LCD
- Resolution
- 1280×800
- Wired Network
- 1 x Wired network port
- Wireless Network
- 5G + 2.4G dual-band Wi-Fi
- Bluetooth
- Built-in Bluetooth
- External Interface
- RS485 interface
- Panel Dimensions
- 289×156×11 mm
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗Leondarx SK Smart Control Panel
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for Leondarx SK Smart Control Panel. Published details include External Interface: RS485 interface; Panel Dimensions: 289×156×11 mm; Installation Size: 86×86×70 mm. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

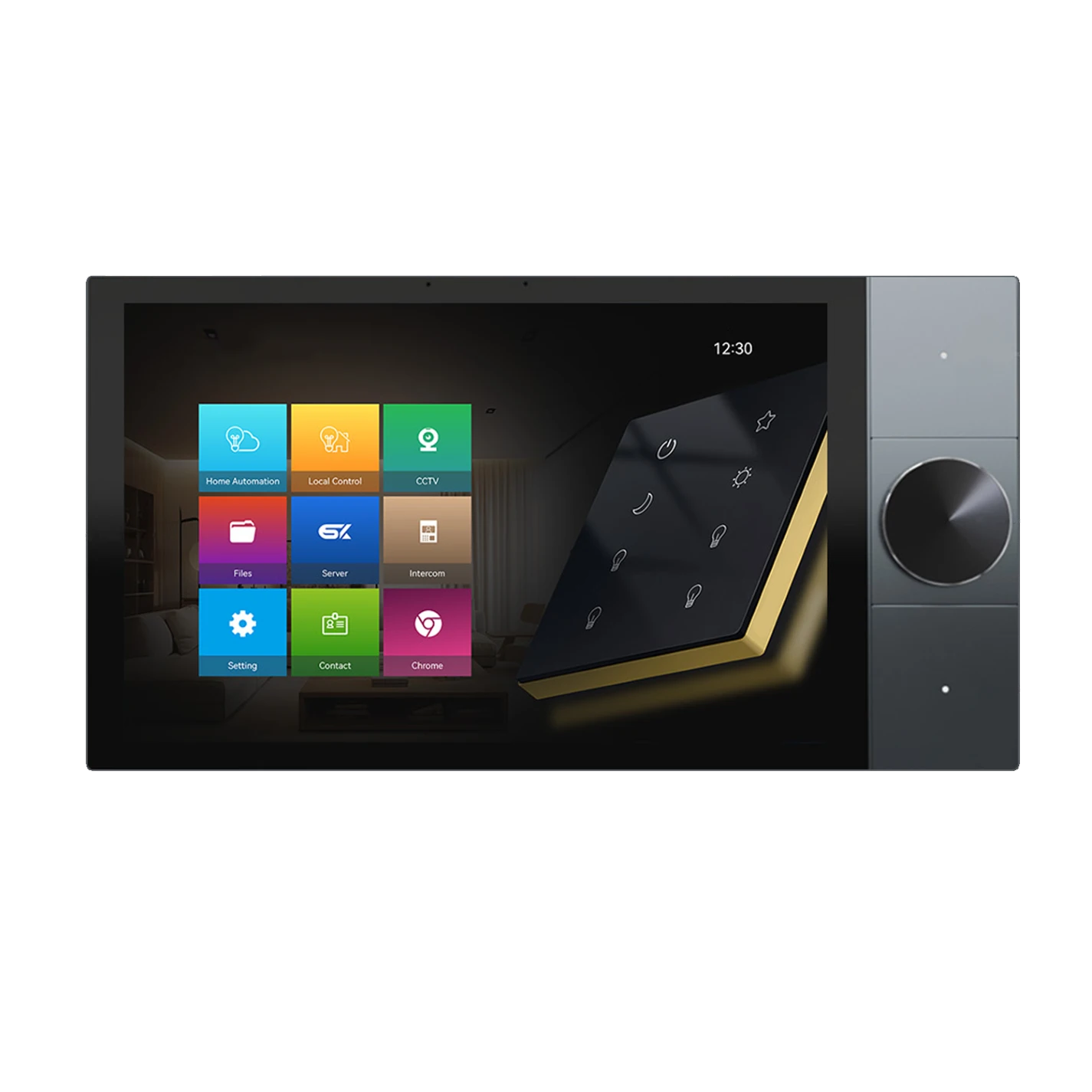

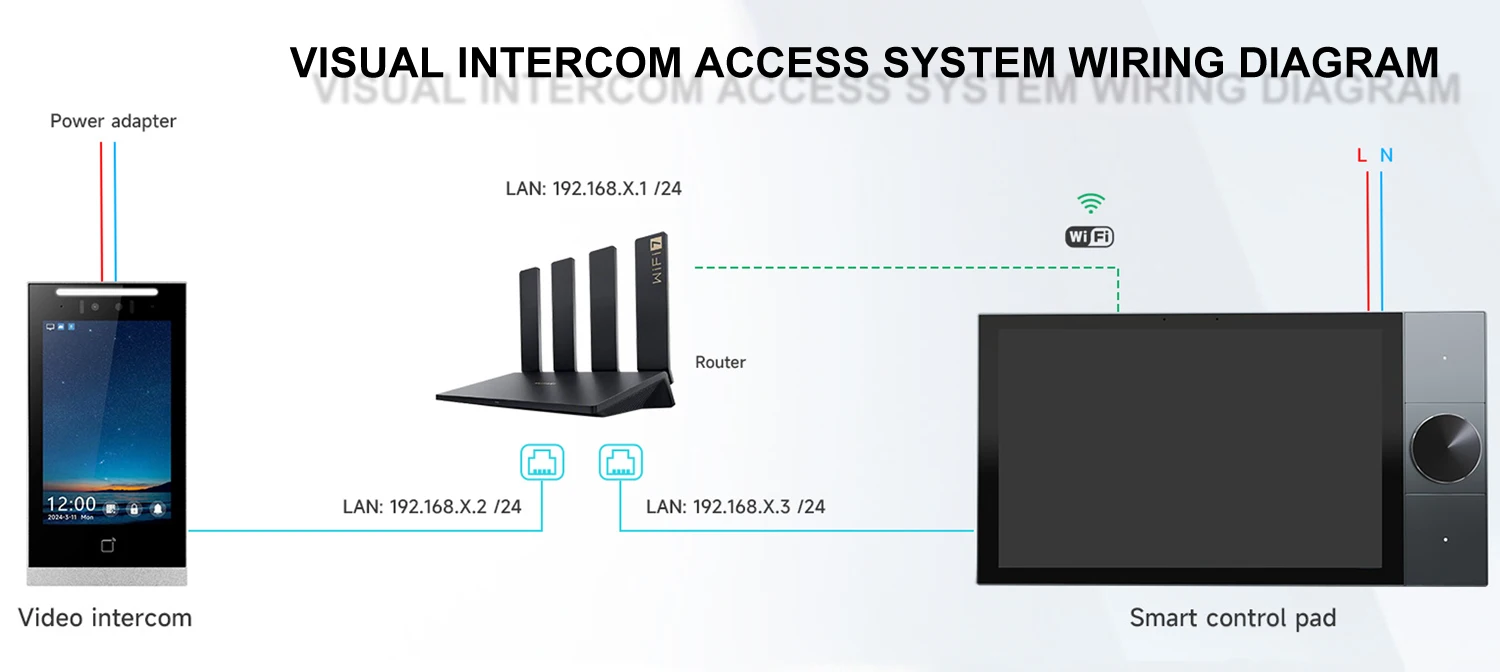

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Processor: Cortex-A53 quad-core 1.5GHz for smooth performance
- Display: 10.1-inch HD IPS LCD with 1280x800 resolution
- Connectivity: Dual-band 5G+2.4G Wi-Fi and wired network port
- Wireless Support: Bluetooth for speaker and device pairing
- Interface: RS485 for industrial and automation integration
- Control Design: One rotary knob plus two physical keys
- Mounting: Standard 86x86mm installation for easy setup
TheSK Pad is a versatile smart control terminal built for reliable performance and easy integration. Its quad-core processor ensures smooth operation of automation tasks and on-screen interactions. The 10.1-inch HD IPS LCD delivers vivid visuals from any viewing angle. Multiple connectivity options including wired network, dual-band Wi-Fi, Bluetooth, and RS485 allow compatibility with diverse smart ecosystems. Designed with standard 86mm mounting, it fits seamlessly into most wall boxes. The combination of a rotary knob and physical keys provides a tactile, user-friendly control experience.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
