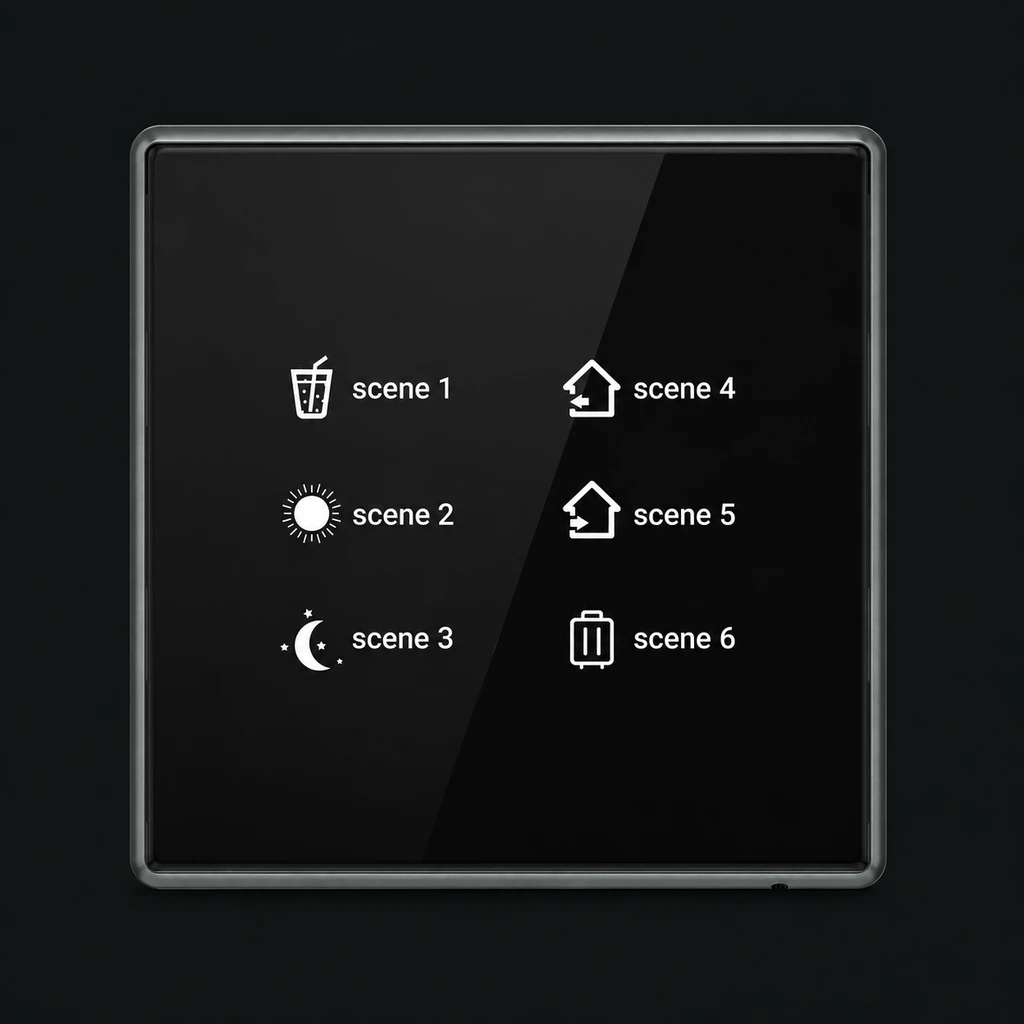

3rd Gen CLASSIC Series Smart Switch

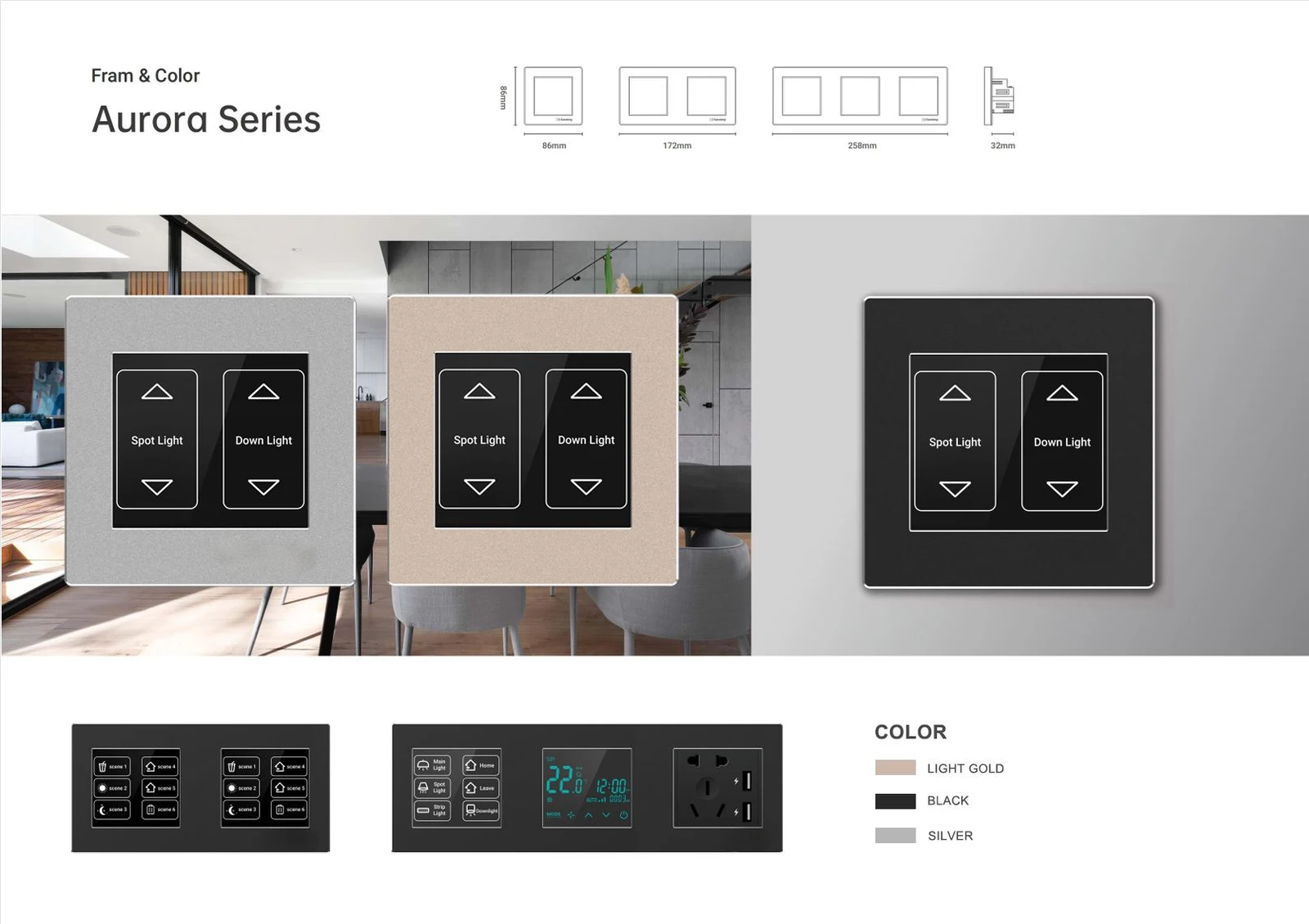

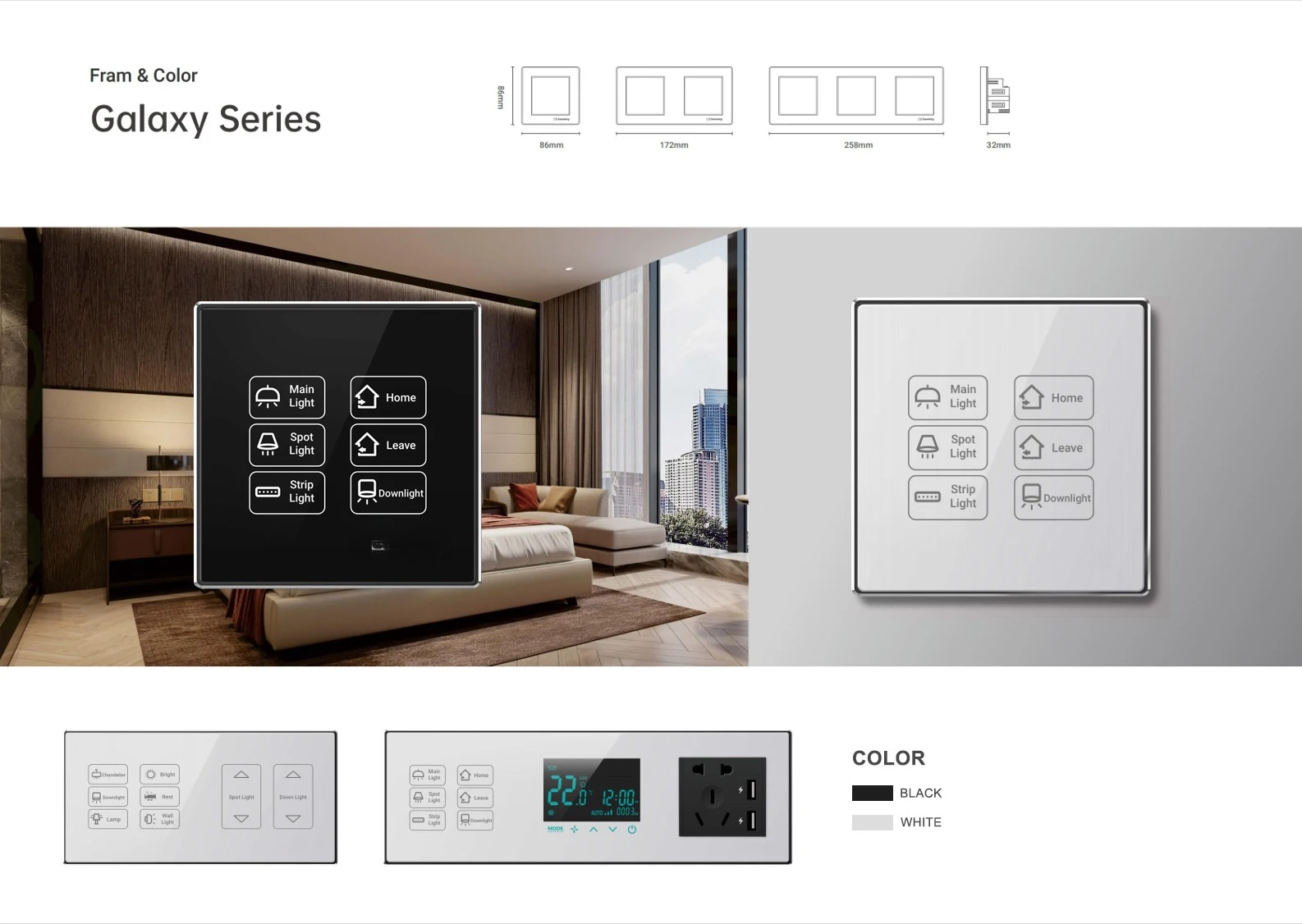

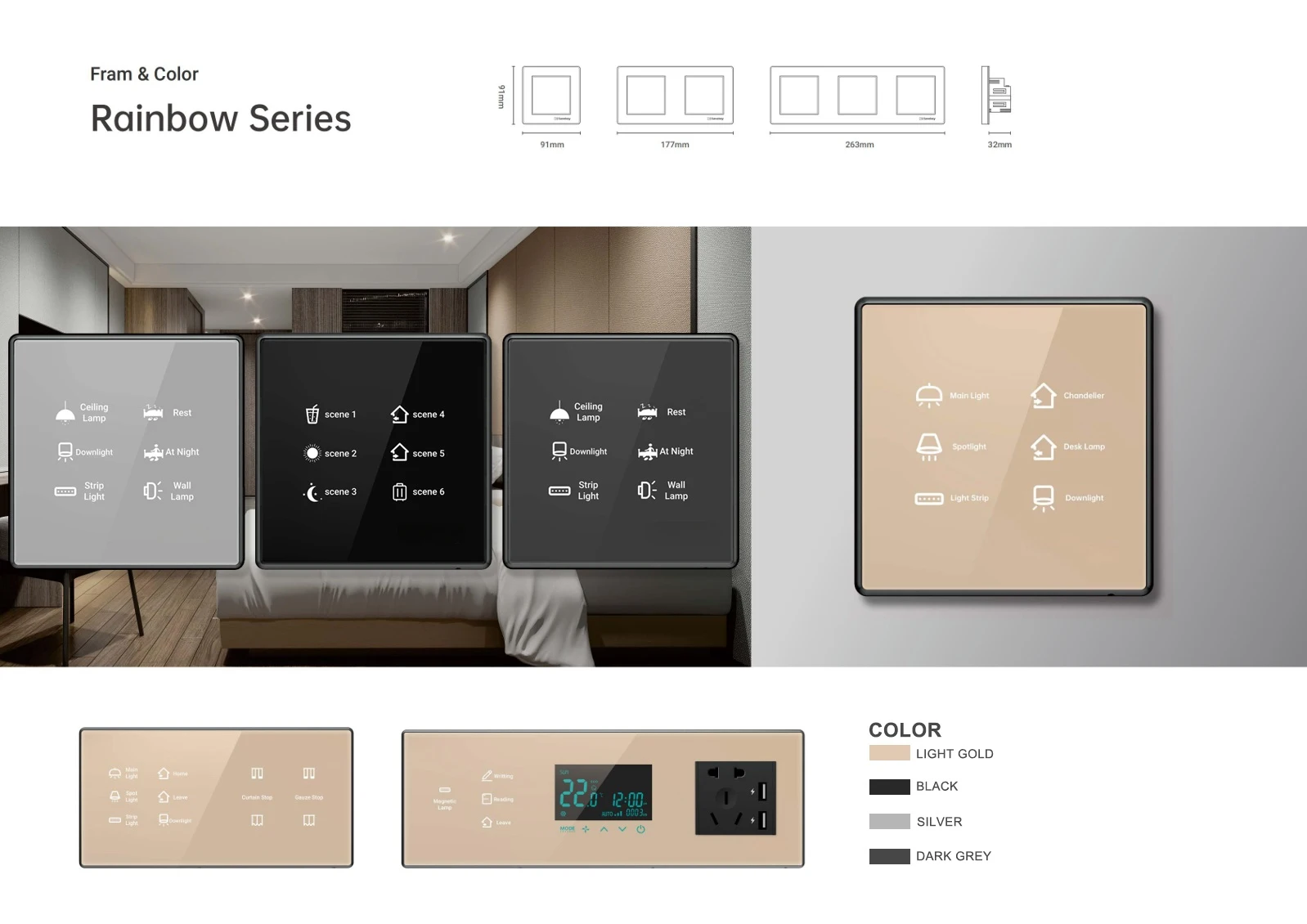

Our intelligent touch lighting switches include Aurora, Galaxy and Rainbow three complete product series.
Room control. Within easy reach.
Explore the application, daily use and installation requirements for this model.

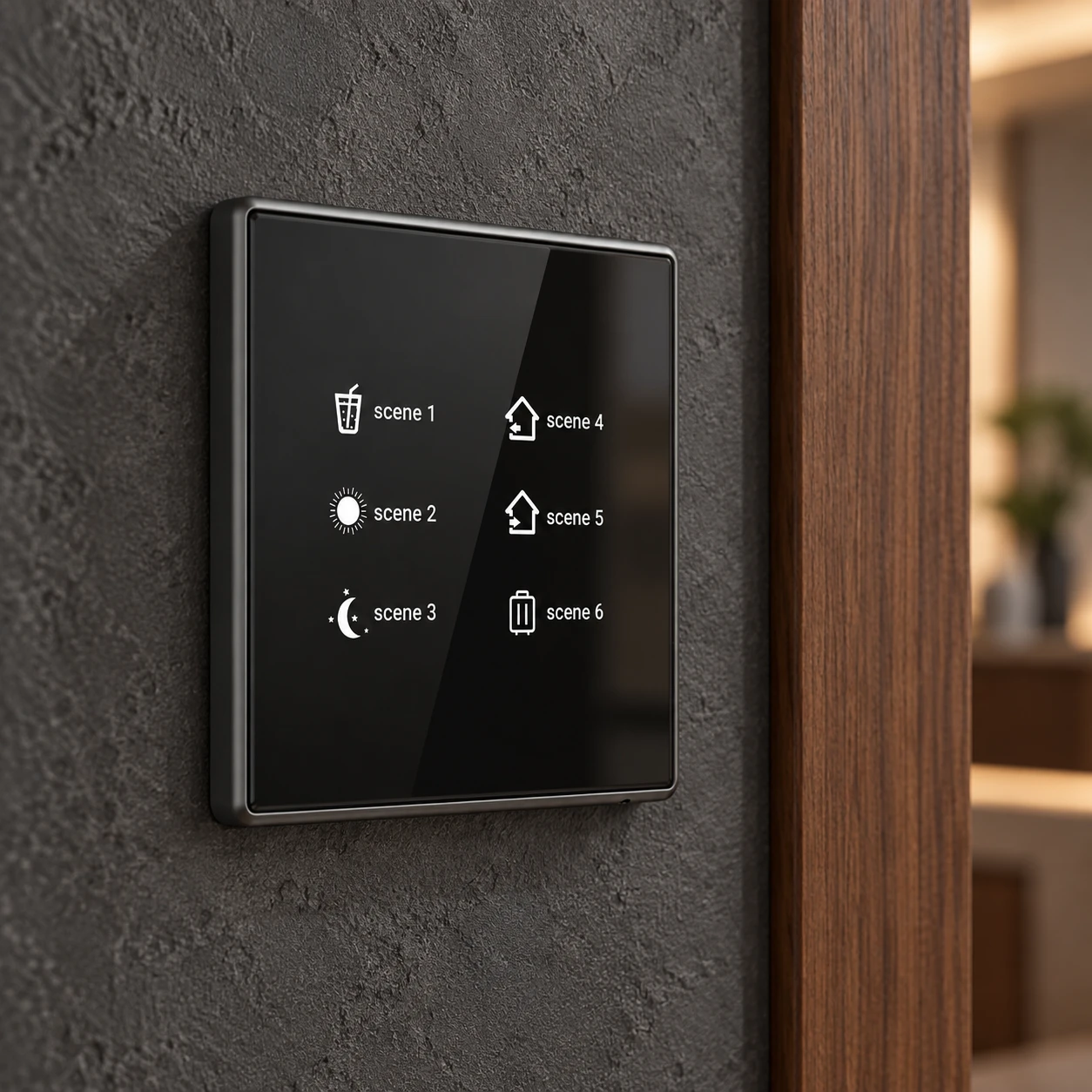

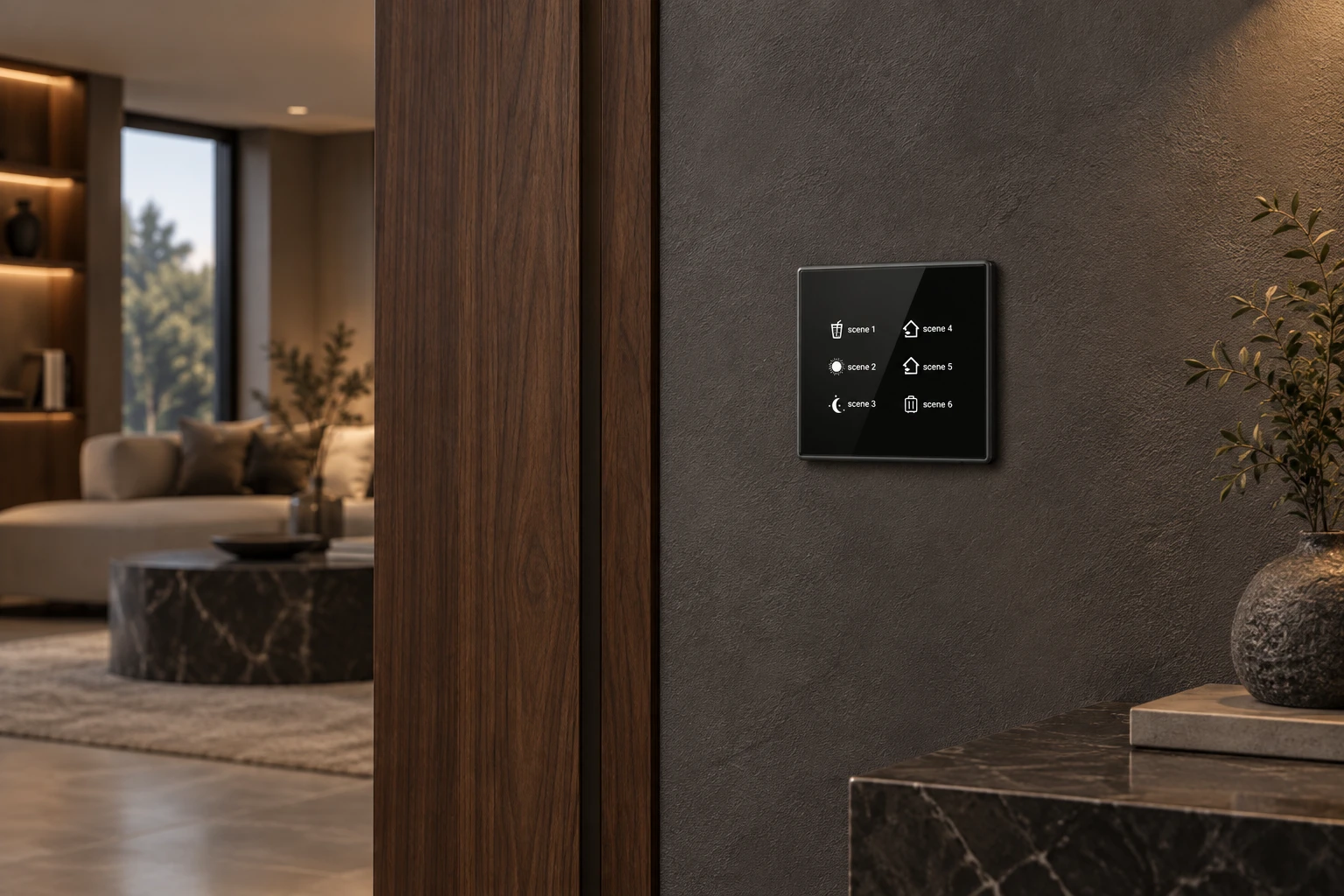

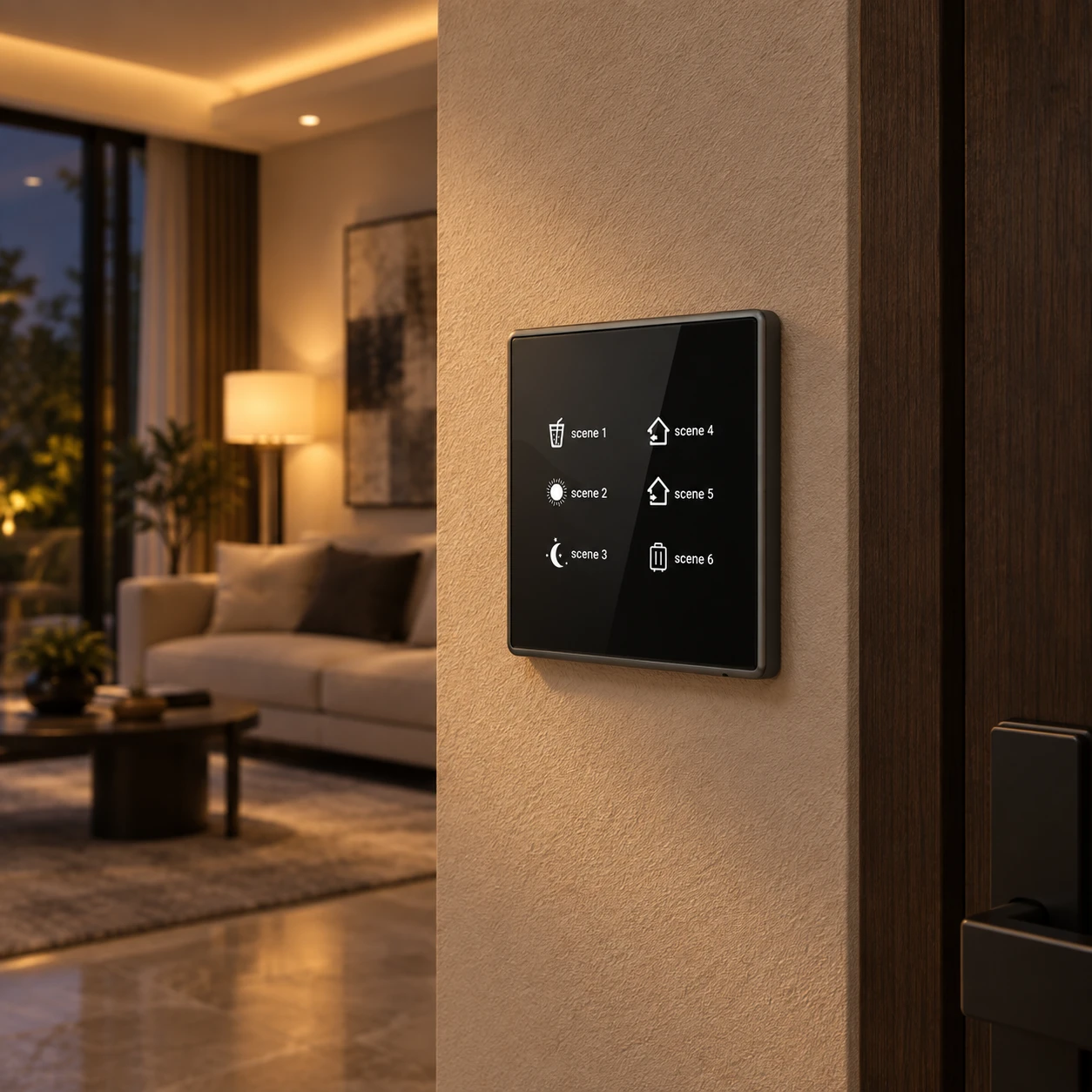

Control at the room entrance.
Place the control device at a useful point in the room. Match the model and its configured functions to the lighting or automation brief.

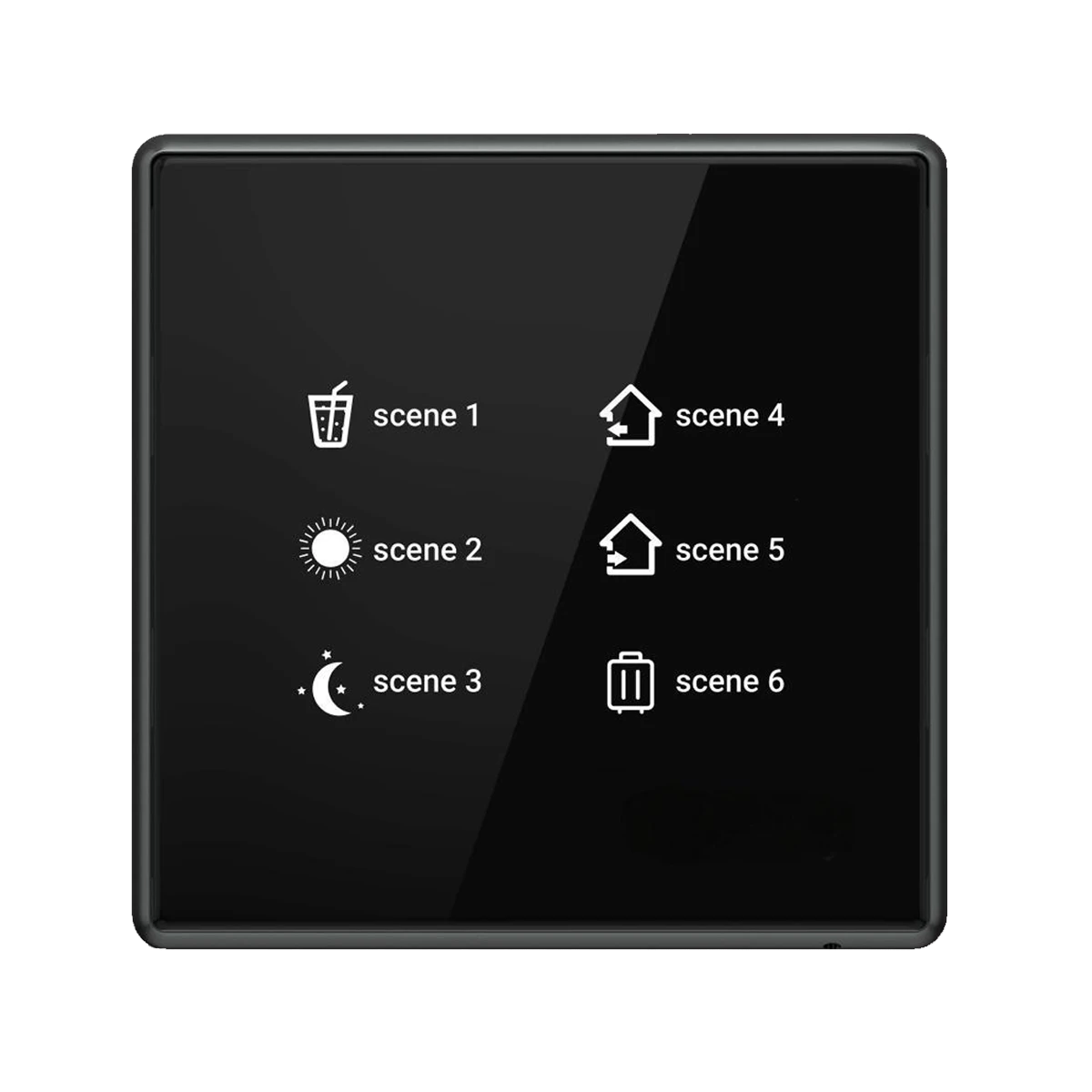

- Panel Material：Aluminum alloy frame matched with acrylic or glass faceplate based on different series
- Control Mode：Capacitive touch button operation with optional 8 colors backlight for keys
Choose the functions for the room.
Review the supported controls and interfaces for this version. Scene functions and connected equipment depend on the selected system.
- Network Compatibility：Support multiple communication protocols
- Output Performance：Four groups of relay output with single channel 10A rated current and max total load of 40A
Plan the panel and infrastructure.
Confirm wall-box dimensions, supply, bus or network connection and the integration scope before installation.
- Wall-box Dimension: 86×86mm,depth:50mm or deepe

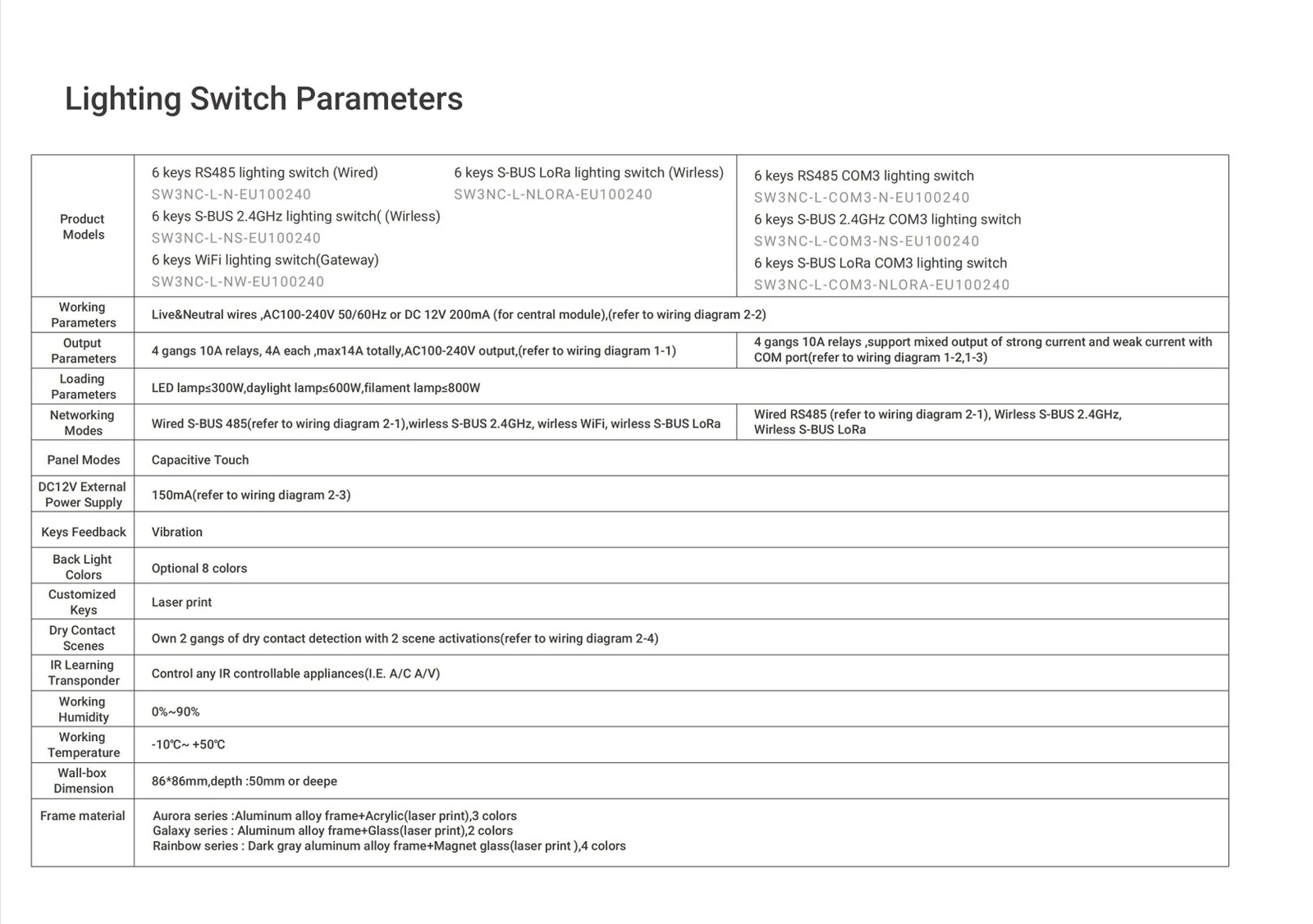

The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Panel Modes
- Capacitive Touch
- Keys Feedback
- Vibration
- Back Light Colors
- Optional 8 colors
- Customized Keys
- Laser print
- Working Temperature
- -10℃~+50℃
- Working Humidity
- 0%~90%
- Wall-box Dimension
- 86×86mm,depth:50mm or deepe
- Loading Parameters
- LED lamp≤300W,daylight lamp＜600W，filament lamp≤800W
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗3rd Gen CLASSIC Series Smart Switch
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 3rd Gen CLASSIC Series Smart Switch. Published details include Wall-box Dimension: 86×86mm,depth:50mm or deepe. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.
Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Panel Material：Aluminum alloy frame matched with acrylic or glass faceplate based on different series
- Control Mode：Capacitive touch button operation with optional 8 colors backlight for keys
- Network Compatibility：Support multiple communication protocols
- Output Performance：Four groups of relay output with single channel 10A rated current and max total load of 40A
- Functional Extension：Built in dry contact for scene trigger and IR learning to manage infrared controlled household appliances
- Power Adaptability：Compatible with AC100-240V main power and optional DC12V external auxiliary power supply
- Appearance Customization：Laser printing on buttons and various shell color choices for three product lines

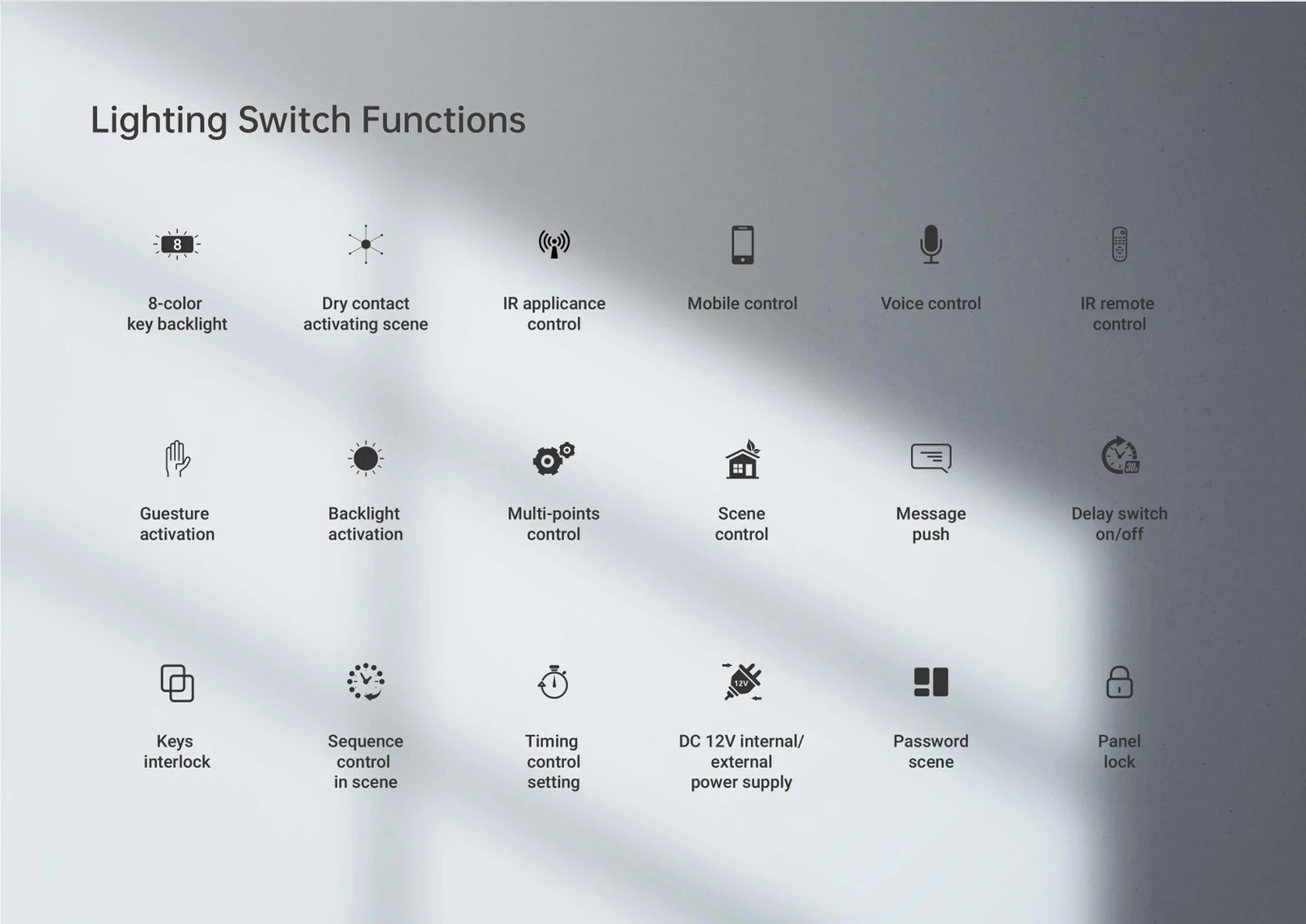

- Smart Functions Integration：Realize mobile control voice control timing setting and scene centralized management
