LEONDARX / Door Station

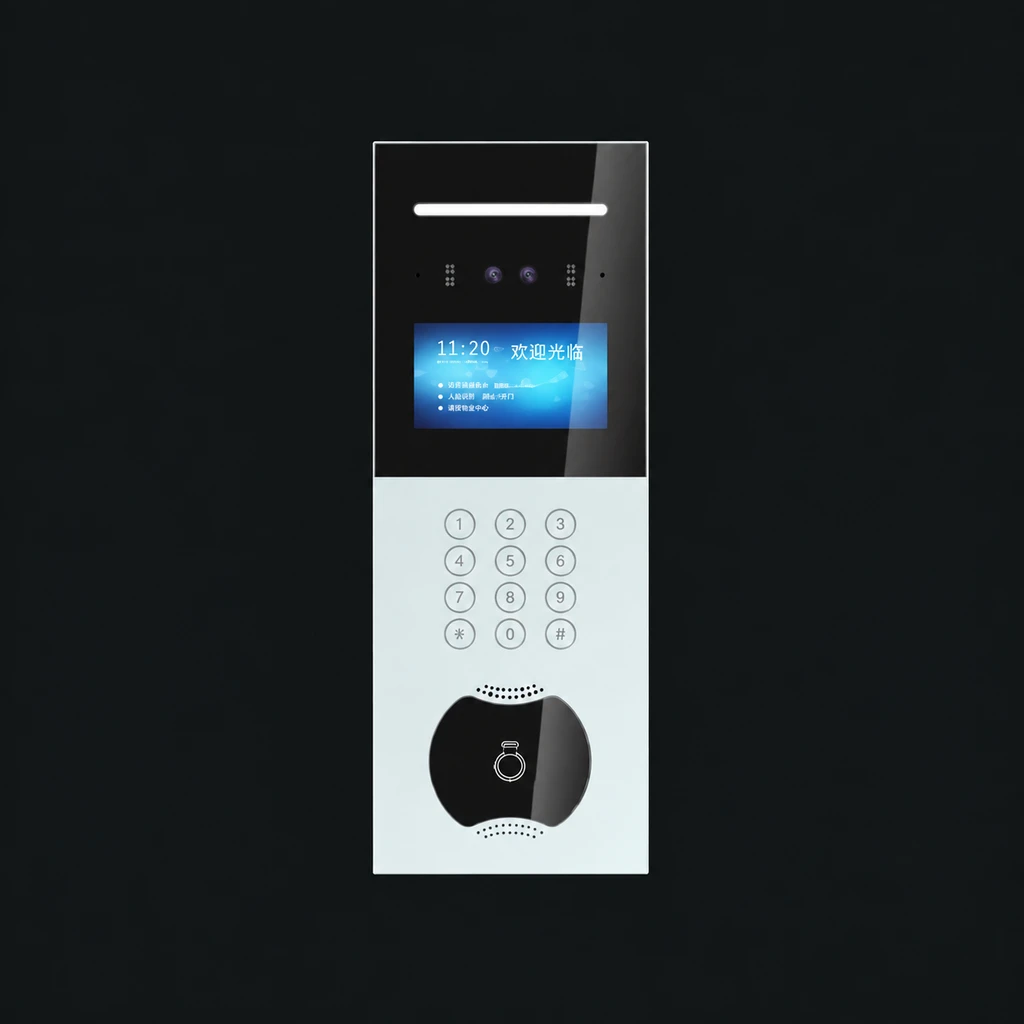

4.3 Inch Digital Display Door Station
A 4.3-inch digital door station with embedded Linux, a dual-lens camera and wired network connectivity for entrance communication and access control.
At the entrance. Built for the access workflow.
Explore the application, daily use and installation requirements for this model.
A clear point of arrival.
The outdoor station is the visitor-facing part of an intercom installation. Match the call workflow and access interface to the building.
- This R19 is designed for efficient and secure access control.
- It features a 4.3-inch digital display and a 2MP dual-lens wide dynamic HD camera to capture clear images.
Communication at the door.
Review the documented call, camera and access functions for this version. The indoor answer point and connected equipment are specified as part of the system.
- With built-in intelligent face recognition and dual-lens liveness detection, it ensures secure identity verification.
- It supports multiple door opening methods and two-way audio intercom, compatible with indoor stations and central management stations, and adopts wired network connection for stable operation.
Specify the entrance together.
Confirm the mounting position, power arrangement, cable route and release interface before installation.
- Casing Material: Explosion-proof aluminum alloy casing
- Door Opening Methods: Face recognition, IC card, video call, remote control
- Communication Mode: TCP/IP
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Screen
- 4.3 inches
- Communication Mode
- TCP/IP
- Network Interface
- 1 × RJ45 10M/100M Ethernet port
- Network Connection
- RJ45 wired network connection, support WEB access
- Display Resolution
- 800×480
- Operating System
- Embedded Linux operating system
- Casing Material
- Explosion-proof aluminum alloy casing
- Camera
- 2MP dual-lens wide dynamic HD camera
- Face Recognition
- Built-in intelligent deep learning face recognition technology, integrating face detection, tracking, capture, feature extraction and recognition
- Liveness Detection
- Accurate dual-lens liveness detection, effectively distinguishing live faces from photos and preventing spoofing attacks
- Door Opening Methods
- Face recognition, IC card, video call, remote control
- Intercom Function
- Two-way audio intercom with indoor station or central management station
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗4.3 Inch Digital Display Door Station
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 4.3 Inch Digital Display Door Station. Published details include Casing Material: Explosion-proof aluminum alloy casing; Door Opening Methods: Face recognition, IC card, video call, remote control; Communication Mode: TCP/IP. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.

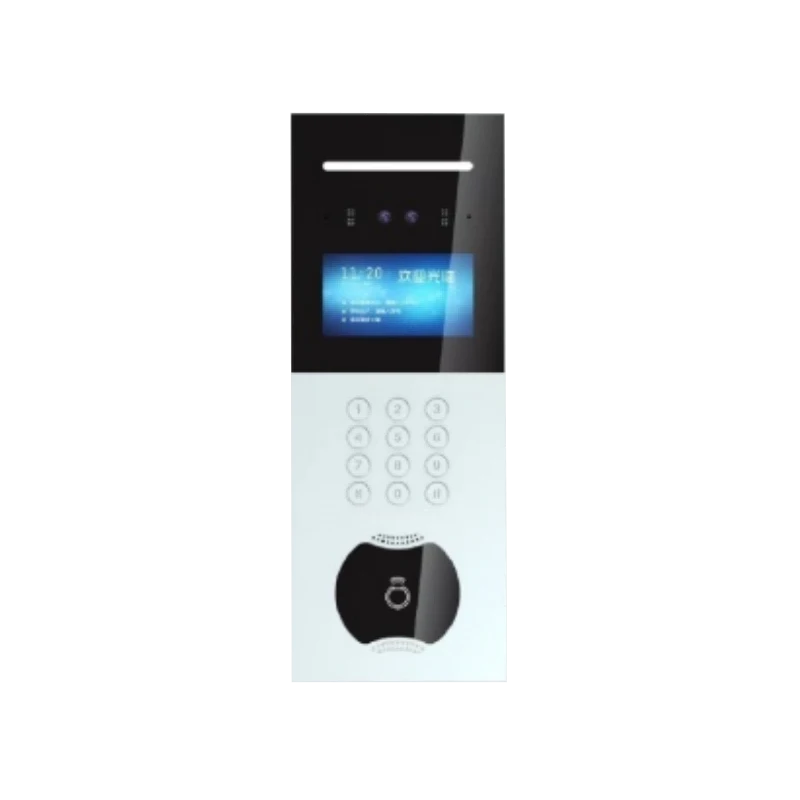

Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
This R19 is designed for efficient and secure access control. It features a 4.3-inch digital display and a 2MP dual-lens wide dynamic HD camera to capture clear images. With built-in intelligent face recognition and dual-lens liveness detection, it ensures secure identity verification.
It supports multiple door opening methods and two-way audio intercom, compatible with indoor stations and central management stations, and adopts wired network connection for stable operation.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
