LEONDARX / Door Station
2-Wire Direct Call Outdoor Station
This 2-wire direct call video intercom station supports Tuya App remote management, featuring IC card unlock, two-way audio/video intercom, and human detection.
At the entrance. Built for the access workflow.
Explore the application, daily use and installation requirements for this model.
A clear point of arrival.
The outdoor station is the visitor-facing part of an intercom installation. Match the call workflow and access interface to the building.
- This Tuya Smart 2-Wire Direct Call Video Intercom Station is a professional access control and intercom solution designed for modern residential and building scenarios, combining easy installation, stable performance, and intelligent management to meet diverse usage needs.
- In terms of installation and construction, the device adopts advanced 2-wire PoE technology for combined power supply and signal transmission, supporting non-polarity wiring without the need to distinguish positive and negative poles.
Communication at the door.
Review the documented call, camera and access functions for this version. The indoor answer point and connected equipment are specified as part of the system.
- This greatly simplifies the wiring process and reduces construction and later maintenance costs.
- The unit features a flush-mount design with a durable CNC metal panel, ensuring long-term durability while seamlessly integrating with various building exterior styles for a clean and practical look.
Specify the entrance together.
Confirm the mounting position, power arrangement, cable route and release interface before installation.
- Outdoor Station Protection: IP55 rated (implied, consistent with industry standard)
- Working Voltage: DC 24~48V Wide Voltage
- Power Consumption: Standby ≤2.5W, Working ≤5W
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- System Type
- Tuya Smart 2-Wire IP Video Intercom System
- Cutout Dimensions
- 210 × 108 × 40 mm
- Panel Material
- CNC Metal Panel
- Unlocking Methods
- IC card, indoor station unlock, Tuya App remote unlock, supports 2 lock outputs (1 relay lock + 1 electric lock)
- App Control
- Tuya App / Smart Life compatible, remote firmware upgrade
- Additional Functions
- Human detection alarm, multi-zone detection, 13-language voice prompts, two-way audio & video intercom
- Application Scenarios
- Villa intercom, single-family homes, multi-unit residential buildings
- Camera Resolution
- 2MP HD CMOS Camera (H.264 HD Video Stream)
- Camera Features
- IR-CUT night vision, 150° horizontal view, WDR, distortion correction
- Working Voltage
- DC 24~48V Wide Voltage
- Power Consumption
- Standby ≤2.5W, Working ≤5W
- Working Temperature
- -40℃ ~ 60℃
- Installation
- Embedded mounting, 2-wire PoE power & signal transmission, non-polarity wiring

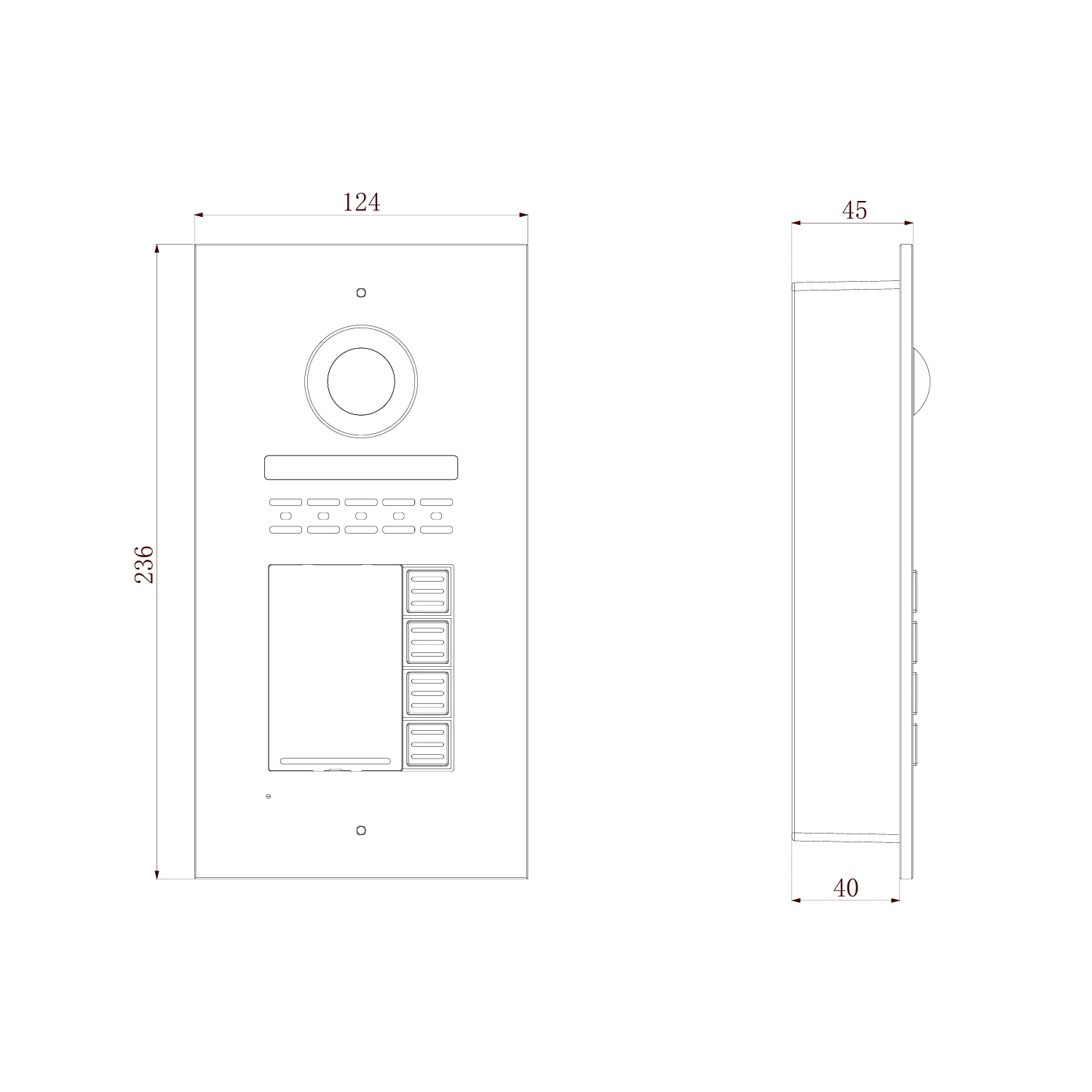

- Product Dimensions
- 236 × 124 × 45 mm
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗
Published manufacturer reference ↗Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 2-Wire Direct Call Outdoor Station. Published details include Outdoor Station Protection: IP55 rated (implied, consistent with industry standard); Working Voltage: DC 24~48V Wide Voltage; Power Consumption: Standby ≤2.5W, Working ≤5W. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.
Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
This Tuya Smart 2-Wire Direct Call Video Intercom Station is a professional access control and intercom solution designed for modern residential and building scenarios, combining easy installation, stable performance, and intelligent management to meet diverse usage needs.
In terms of installation and construction, the device adopts advanced 2-wire PoE technology for combined power supply and signal transmission, supporting non-polarity wiring without the need to distinguish positive and negative poles. This greatly simplifies the wiring process and reduces construction and later maintenance costs. The unit features a flush-mount design with a durable CNC metal panel, ensuring long-term durability while seamlessly integrating with various building exterior styles for a clean and practical look.
For imaging and security performance, the outdoor station is equipped with a 2MP WDR CMOS HD camera with a 150° horizontal viewing angle. Combined with IR-CUT night vision and distortion correction technology, it delivers clear, distortion-free H.264 HD video streams in both bright daytime and low-light nighttime environments, enabling reliable monitoring and visitor identification. The built-in human detection alarm function supports multi-zone combination settings, accurately identifying human activity and sending alerts to effectively enhance security.
Regarding unlocking and intercom functions, the device offers multiple convenient access methods: IC card unlock, indoor station call unlock, and remote unlock via the Tuya App. It supports dual lock outputs, allowing simultaneous connection to both relay locks and electric locks to meet the access needs of different control systems. Two-way audio and video intercom, paired with 13-language voice prompts, caters to both local communication and multi-language usage scenarios, adapting to different user habits.
For maintenance and stability, the station supports both local and remote firmware upgrades via the Tuya App, facilitating later functional updates and troubleshooting. The DC24-48V wide voltage design and operating temperature range of -40℃ to 60℃ ensure stable operation in various extreme environments. Power consumption is optimized with standby power ≤2.5W and working power ≤5W, balancing performance and energy efficiency.
Product Certificates
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
