LEONDARX / Door Station

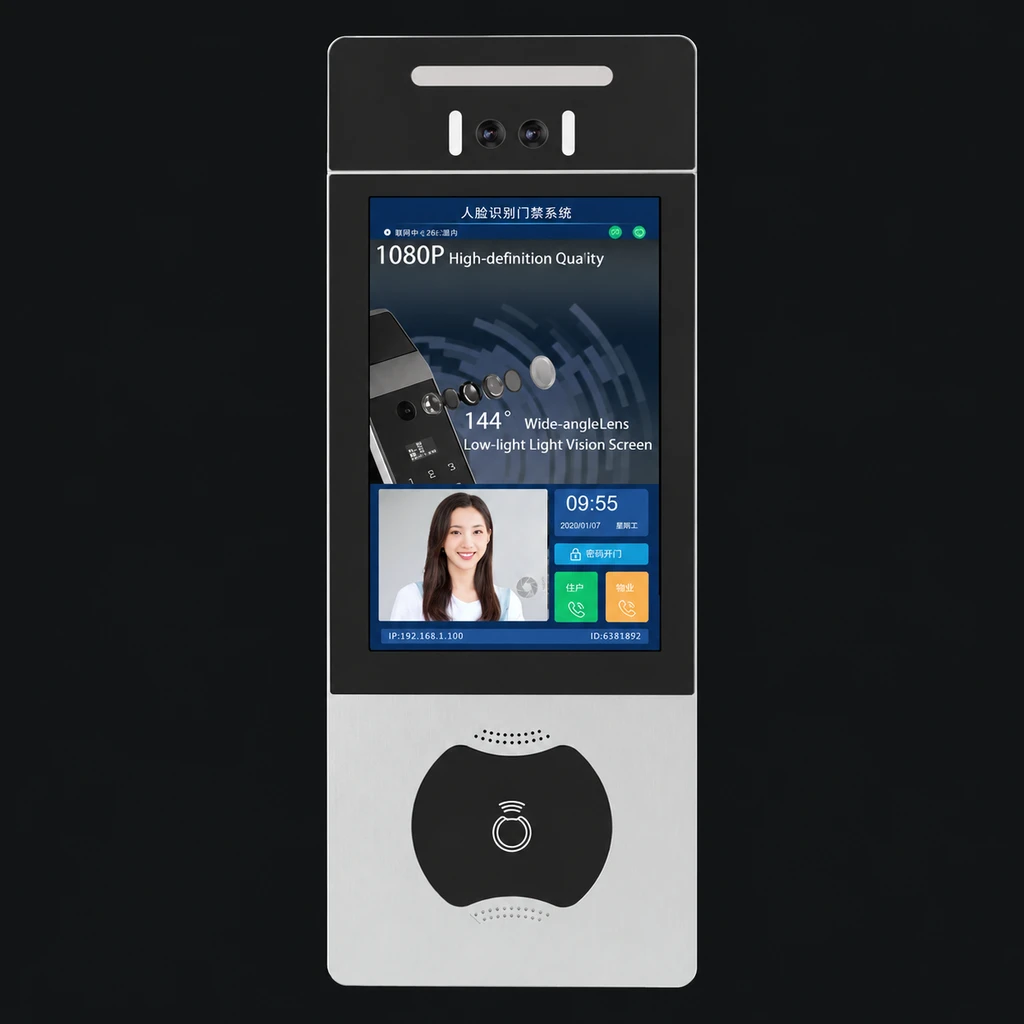

8 Inch Digital Display Door Station
An 8-inch door station with embedded Linux, a dual-lens camera and multiple documented access methods for building entrances.
At the entrance. Built for the access workflow.
Explore the application, daily use and installation requirements for this model.

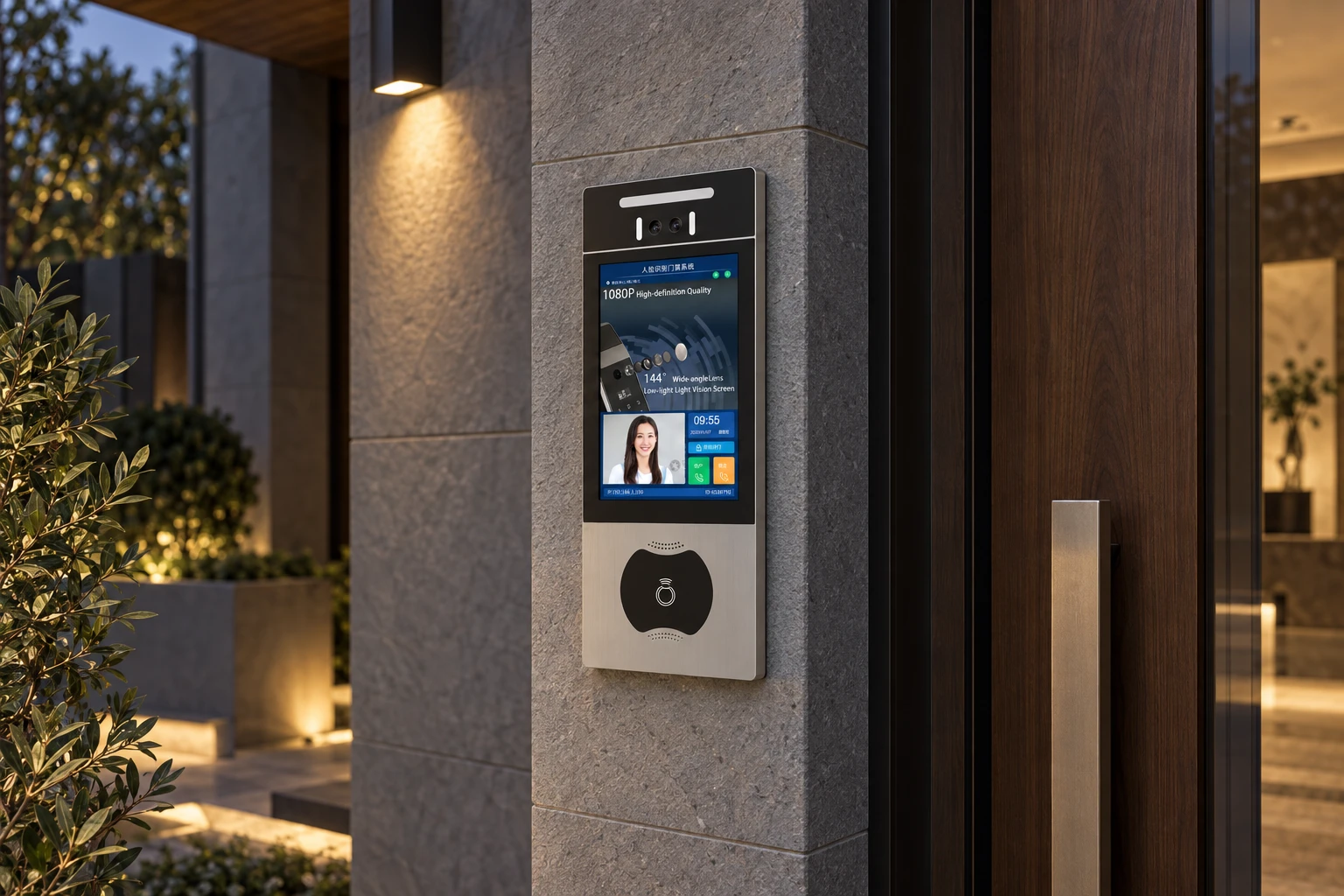

A clear point of arrival.
The outdoor station is the visitor-facing part of an intercom installation. Match the call workflow and access interface to the building.
- Embedded Linux operating system: Ensures stable and efficient operation of the door station
- aluminum alloy casing: Provides solid protection for the device

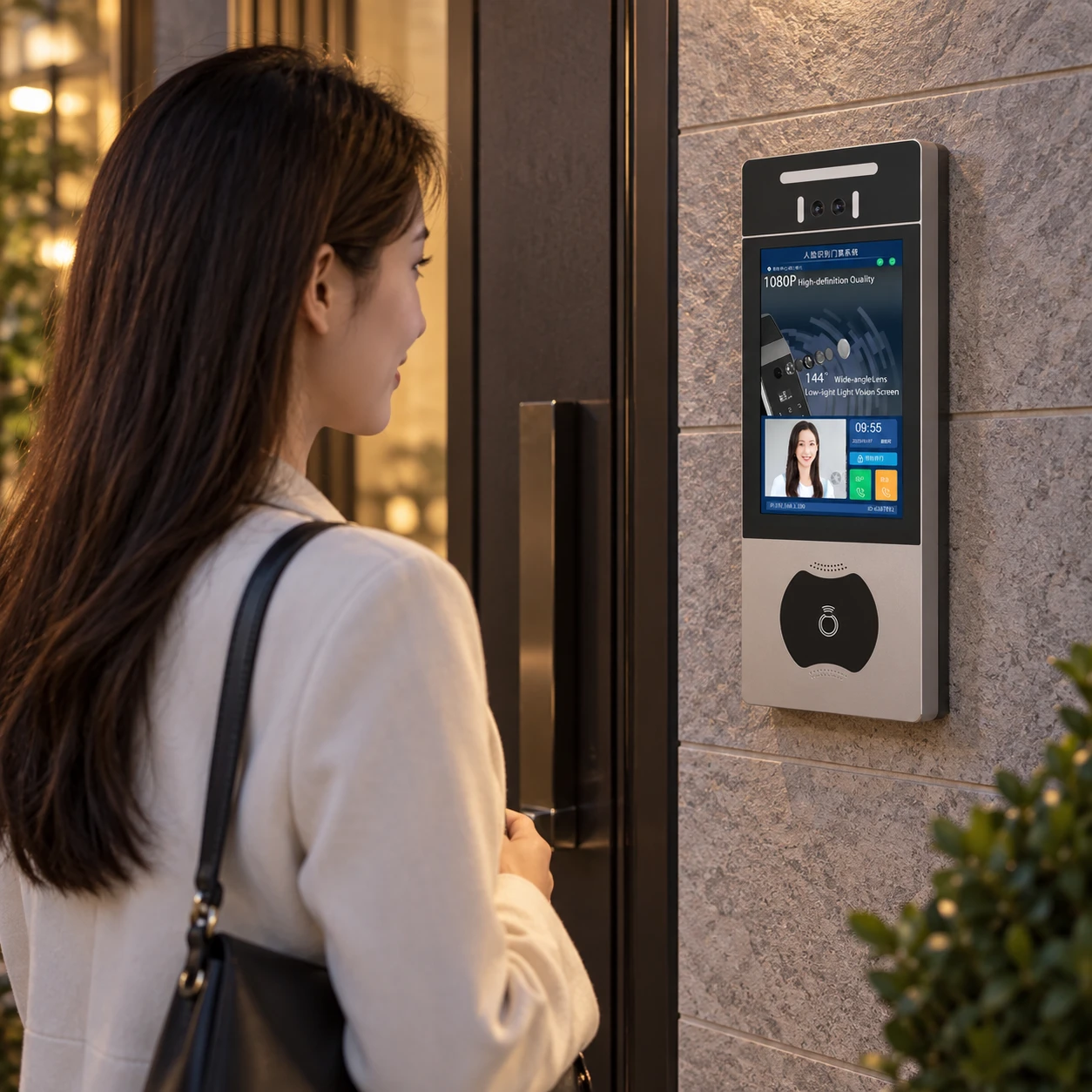

Communication at the door.
Review the documented call, camera and access functions for this version. The indoor answer point and connected equipment are specified as part of the system.
- 2MP dual-lens wide dynamic HD camera: Captures clear images in different environments
- Intelligent deep learning face recognition: Integrates face detection tracking capture feature extraction and recognition

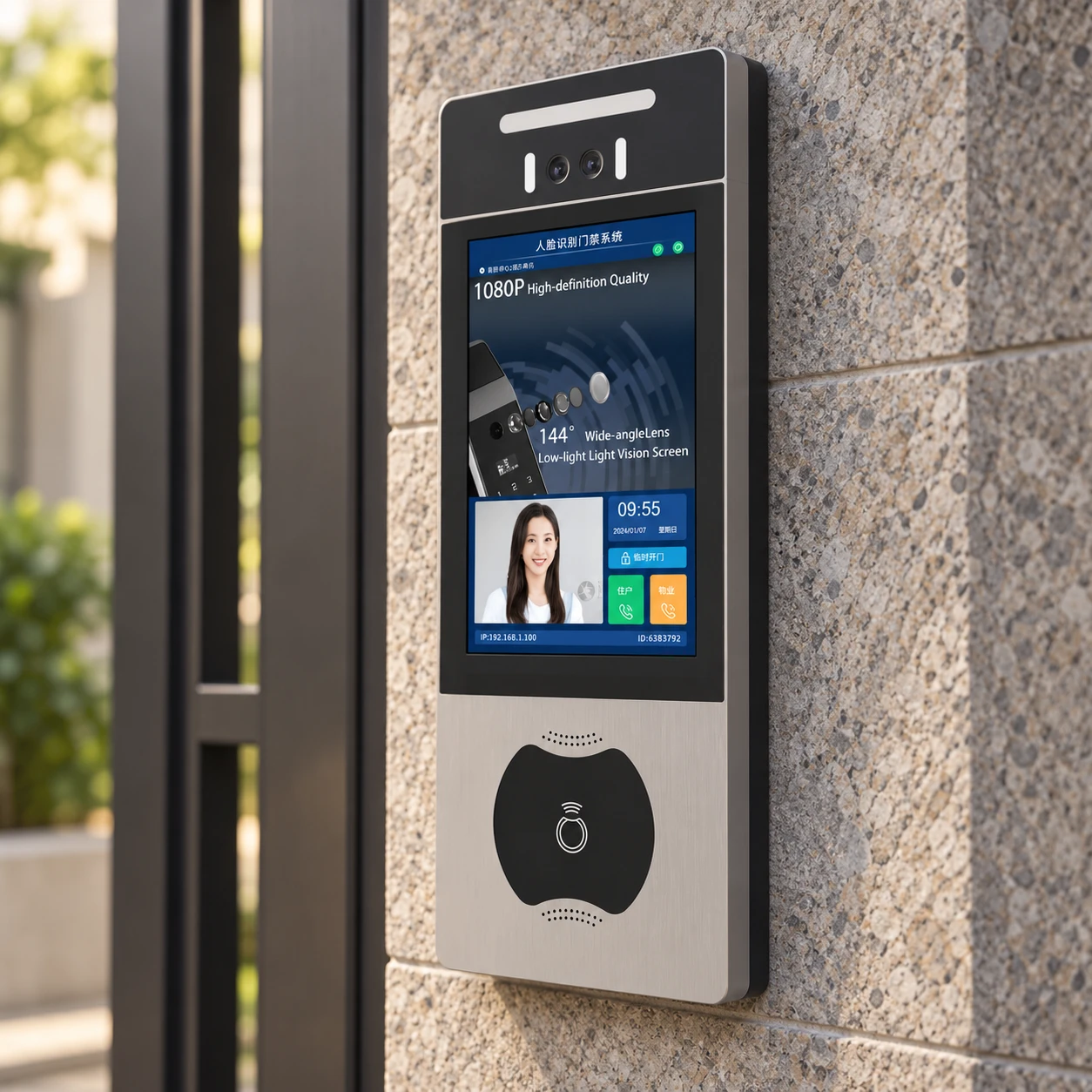

Specify the entrance together.
Confirm the mounting position, power arrangement, cable route and release interface before installation.
- Network interface: 1 × RJ45 10M/100M Ethernet port
- Door opening methods: Face recognition, IC card, video call, remote control
- Communication mode: TCP/IP
The details behind the selection.
Specifications apply to this model. Confirm the hardware revision, optional functions and installation requirements before ordering.
- Screen
- 8-inch
- Intercom function
- Supports two-way audio intercom with indoor station or central management station
- Network connection
- Supports RJ45 wired network connection
- Management access
- Supports WEB access
- Communication mode
- TCP/IP
- Display resolution
- 800×480
- Operating system
- Embedded Linux operating system
- Casing
- Explosion-proof aluminum alloy casing
- Camera
- Built-in 2MP dual-lens wide dynamic HD camera
- Network interface
- 1 × RJ45 10M/100M Ethernet port
- Recognition technology
- Built-in intelligent deep learning face recognition technology
- Liveness detection
- Accurate dual-lens liveness detection
- Door opening methods
- Face recognition, IC card, video call, remote control
COMPLIANCE DOCUMENTATION
Check the evidence for your market.
Request documents that identify the exact model and test scope. Published manufacturer material is a reference; confirm applicability to your destination market and ordered configuration.
Request compliance documents ↗8 Inch Digital Display Door Station
Confirm applicable reports and declaration documents with the project team.Before you specify.
Installation and ordering questions for this model.
What should I confirm before ordering this model?+
Confirm the hardware revision and installation configuration for 8 Inch Digital Display Door Station. Published details include Network interface: 1 × RJ45 10M/100M Ethernet port; Door opening methods: Face recognition, IC card, video call, remote control; Communication mode: TCP/IP. Use the original model material below and request the matching technical sheet.
Can it be used with the existing installation?+
Confirm the existing cabling, supply, topology and communication interfaces against the selected model. Connected devices and optional gateways must be checked as a complete system.
Which documents are available for project review?+
Original manufacturer images and model detail sheets are retained below. Request current installation instructions, version-specific specifications and any applicable compliance documents for your market and ordered configuration.
Original model material.
Manufacturer views, drawings and original detail sheets remain available for a technical review.
View manufacturer images & drawings+
Original manufacturer description+
Original source material for reference. General service terms and version-dependent claims require confirmation for your order.
- Embedded Linux operating system: Ensures stable and efficient operation of the door station
- Explosion-proof aluminum alloy casing: Provides solid protection for the device
- 2MP dual-lens wide dynamic HD camera: Captures clear images in different environments
- Intelligent deep learning face recognition: Integrates face detection tracking capture feature extraction and recognition
- Dual-lens liveness detection: Distinguishes live faces from photos to prevent spoofing attacks
- Multiple door opening methods: Supports face recognition IC card video call and remote control
- Two-way audio intercom: Enables communication with indoor station or central management station

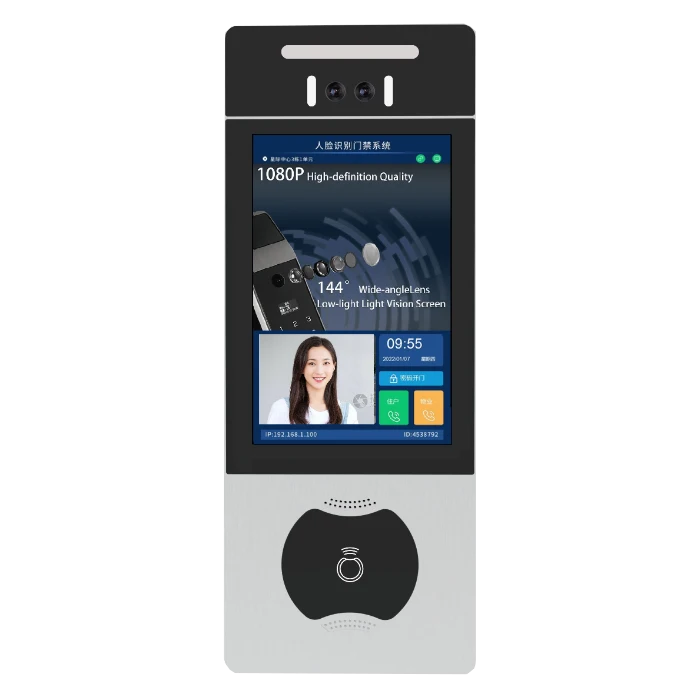

This RD2 is equipped with an 8-inch digital display and built-in embedded Linux operating system. It uses an explosion-proof aluminum alloy shell and a 2MP dual-lens wide dynamic HD camera. With deep learning face recognition technology and dual-lens liveness detection, it can effectively prevent spoofing attacks.
The device supports face recognition, IC card, video call and remote control to open doors, realizes two-way audio intercom, and supports RJ45 wired network and WEB access, ensuring stable and reliable access control performance.
Start with the installation.
Share the door or room layout, target market, quantities and integration requirements. We can help define the model configuration.
